  • Light Industry -Fiberglass Bag Air Filter

    Clapboard:withoutClapboardMediumMaterial:FiberglassFiltrationGrade:M5-F8Type:BagFilterMedia:ExtremelyDetailedSpecialFiberglassFrame:Aluminum

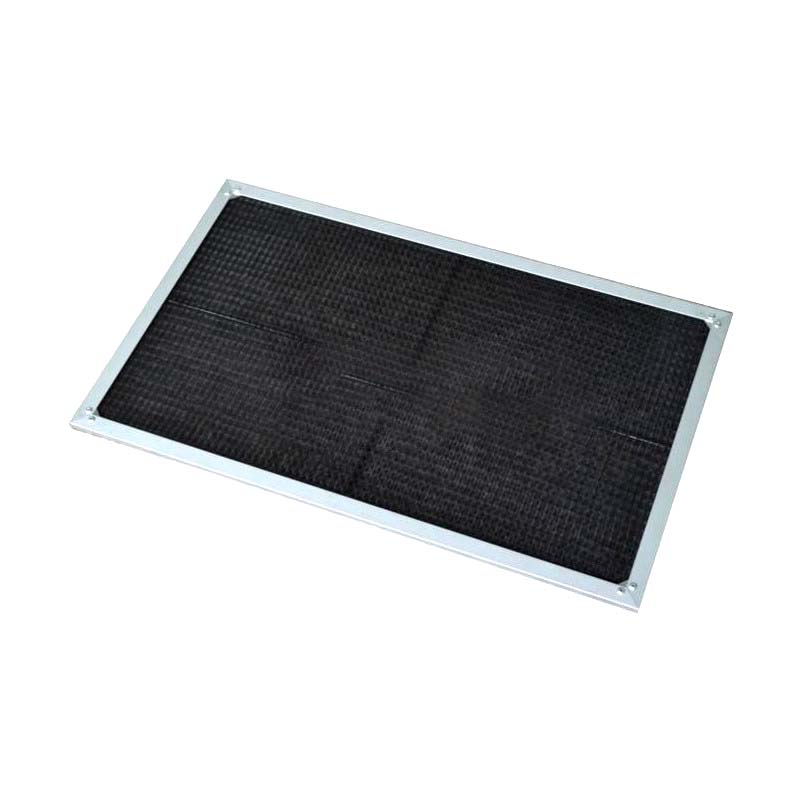

    Air Filter Material Air Purifier Filter Washable Nylon Mesh 20 Micron Industrial Air Filter Photos 1655112749

    Model NO.
    HBG
    • Temperature
    Maximum 200ºC in Continuous Service
    Transport Package
    Carbon and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai
    HS Code
    8421999090

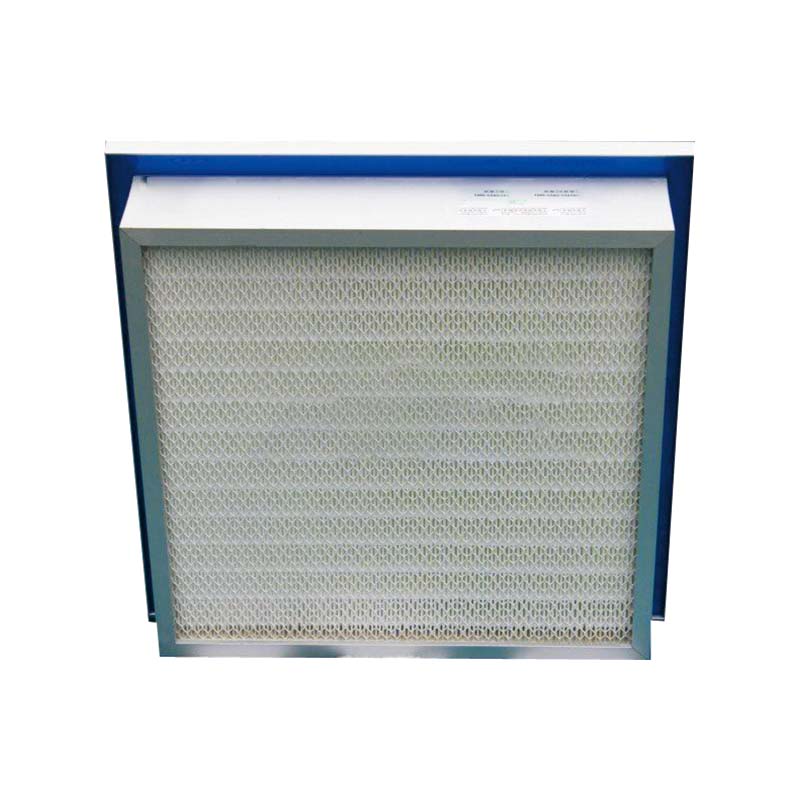

    99.997%@ 0.3 Micron Paricle Gel Seal Hepa Air Filter With Fiberglass Media 1655272049

    Product Description


    Advantages
    Filter efficiency ranges from M5 to F8.
    Filter material is made of extremely detailed special fiberglass, enhanced with non-woven composite. It has a high dust-holding capacity.
    Fire-protection class: UL-900 Class 2.
    The filter frame is made of aluminum alloy, galvanized steel or stainless steel.
    Has passed international UL certification and meet EN779:2012.

    Material Instructions
    Media: Extremely detailed special fiberglass.
    Frame: Galvanized plate, aluminum or stainless steel plate, the usual thickness are 21mm, 25 mm or 45 mm.
    Temperature: maximum 200°C in continuous service.

    Application
    Suitable for the electronics, bio-pharmaceutical, machinery, instrumentation, petrochemical and light industry as general air purification systems.

    Structure Drawings
    Common Specifications
    ModelDimensionsNo. of PocketsMedia Area (m2)Initial Pressure Drop (Pa) @ Rated Air Flow (m3/h)
    W×H×D (mm)M5                40~45%M6               60~65%F7              80~85%F8              90~95%
    HBG-24×24×36-10P592×592×9151012.0-87@5100110@4250125@4250
    HBG-24×24×30-10P592×592×76210.0-85@510078@3400105@3400
    HBG-24×24×22-10P592×592×5587.4-80@3400120@3400130@3400
    HBG-24×24×15-10P592×592×3815.2-87@2550115@2550150@2550
    HBG-24×24×36-8P592×592×91589.8-77@425088@3400110@3400
    HBG-24×24×30-8P592×592×7628.2-82@425096@3400125@3400
    HBG-24×24×22-8P592×592×5586.1-110@3400105@2550125@2550
    HBG-24×24×15-8P592×592×3814.2-102@255095@1700140@1700
    HBG-24×24×36-6P592×592×91567.6-75@3400110@3400130@3400
    HBG-24×24×30-6P592×592×7626.444@340072@3400120@3400115@2550
    HBG-24×24×22-6P592×592×5584.753@340087@2550130@2550120@1700
    HBG-24×24×15-6P592×592×3813.365@340082@1700125@1700140@1250
    HBG-20×24×36-5P492×592×91556.3---130@3000
    HBG-20×24×30-5P492×592×7625.344@280070@3000115@3000125@2550
    HBG-20×24×22-5P492×592×5583.953@2800107@3000140@2550115@1500
    HBG-20×24×15-5P492×592×3812.765@2800102@2100130@1500110@1000
    HBG-20×20×36-5P492×492×91555.4---130@2550
    HBG-20×20×30-5P492×492×7624.544@230070@2550115@2550125@2100
    HBG-20×20×22-5P492×492×5583.353@2300107@2550140@2100115@1250
    HBG-20×20×15-5P492×492×3812.365@2300102@1700130@1250110@850
    HBG-12×24×36-3P287×592×91533.7---145@1700
    HBG-12×24×30-3P287×592×7623.144@170077@1700125@1700125@1250
    HBG-12×24×22-3P287×592×5582.353@170087@1250135@1250105@850
    HBG-12×24×15-3P287×592×3811.665@170082@850125@850-
    KOSAFILTER makes various of other models' HBG filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.


    www.kosafilter.comwww.kosafilter.com



    My Dear Friend:

    Welcome to vist our company and willing to contact us if you need any further support before or after sales:
    SuZhou KoSa Environmental Protection CO.,LTD.
    Address: No.625 Huayuan Road, Zhangpu Town, Kunshan,Jiangsu Province,China
    -------Vicky


    Website: www.kosafilter.comwww.kosafilter.com

    Tel:+86 18917539938

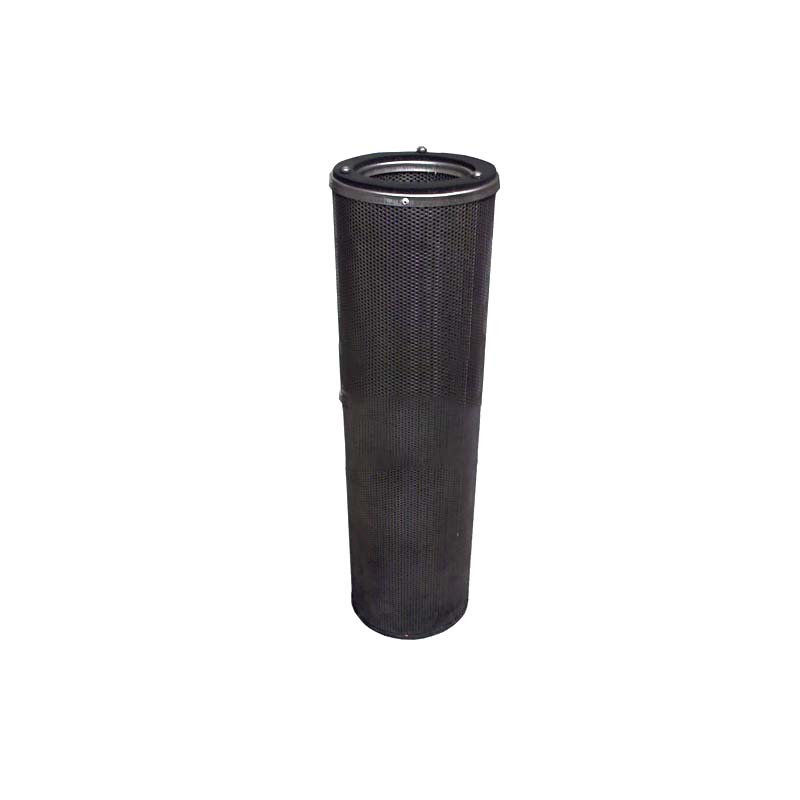

    Activated Carbon Filter Cylinder Photos & Pictures 1654847199
