  • KOSA U15 Ceiling ULPA Air Filters for Grade 100 Clean Room

    Clapboard:withoutClapboardMediumMaterial:FiberglassEfficiency:U15-U17FiltrationGrade:ULPAFilterType:PanelFilterMedia:Ultra-FineFiberglassorPTFEFilterPaper

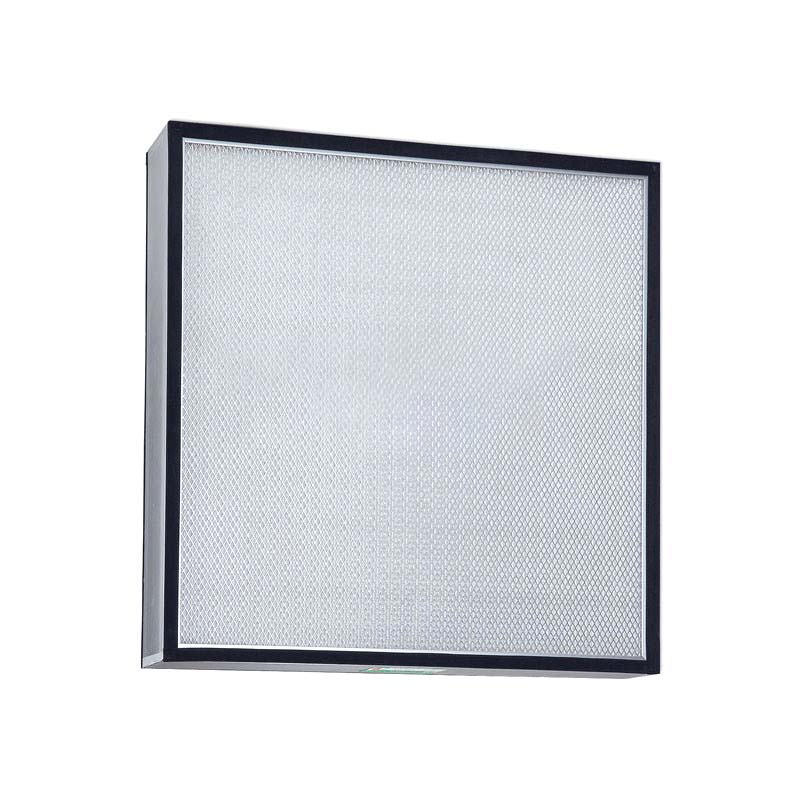

    Air Purifier Hepa Filter For Laminar Flow Hood Photos 1655188759

    Model NO.
    HMU
    • Frame
    Anodised Aluminium or Stainless Steel
    Separator
    Hot-Melt Glue
    Sealant
    Polyurethane
    Transport Package
    Carton Ang Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai
    HS Code
    8421999090

    Activated Carbon Granule V Bank Compact Air Filter Photos & Pictures 1655183598

    Product Description

    Advantages
    Filter efficiency ranges from U15 to U17.
    Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
    Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
    Double side retainers, protect the filter media, good strength.
    Light in weight, compact in structure.
    Each ULPA filter is tested according to EN1822:2009.

    Material Instructions
    Media: Ultra-fine fiberglass or PTFE filter paper.
    Frame: Anodised aluminium or stainless steel.
    Separator: Hot-melt glue.
    Sealant: Polyurethane.
    Temperature: Maximum 90°C in continuous service.

    Application
    Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices, and the occasions require ultra-high cleanliness.



    Common Specification
    ModelDimensionsMedia Area
    (m2)    		Rated Air Flow
    (m3/h)    		Initial Pressure Drop
    (Pa)
    W×H×D (mm)
    HMU305/10-50305×305×501.6150≤250
    HMU610/05-50305×610×503.3300
    HMU610/10-50610×610×506.7600
    HMU570/20-501170×570×50121300
    HMU1170/10-501170×1170×50242600
    HMU610/05-70305×610×705.5500
    HMU610/10-70610×610×7011.31000
    HMU610/15-70915×610×7017.01500
    HMU610/20-701220×610×7022.72000
    HMU570/10-70570×570×709.7900
    HMU570/20-701170×570×7020.41800
    HMU1170/10-701170×1170×7040.83600
    HMU610/10-90610×610×9015.41300
    HMU610/15-90915×610×9023.22000
    HMU610/20-901220×610×9031.12600
    KOSAFILTER makes various of other models' HMU filter which are not listed in above table. Please consult with us if you need.

     The Initial Pressure Drop and Rated Air Flow Performance Curve


    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
