  • Fireproof Filter Media

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:CottonEfficiency:F5FiltrationGrade:PreFilterType:FilterMetarial

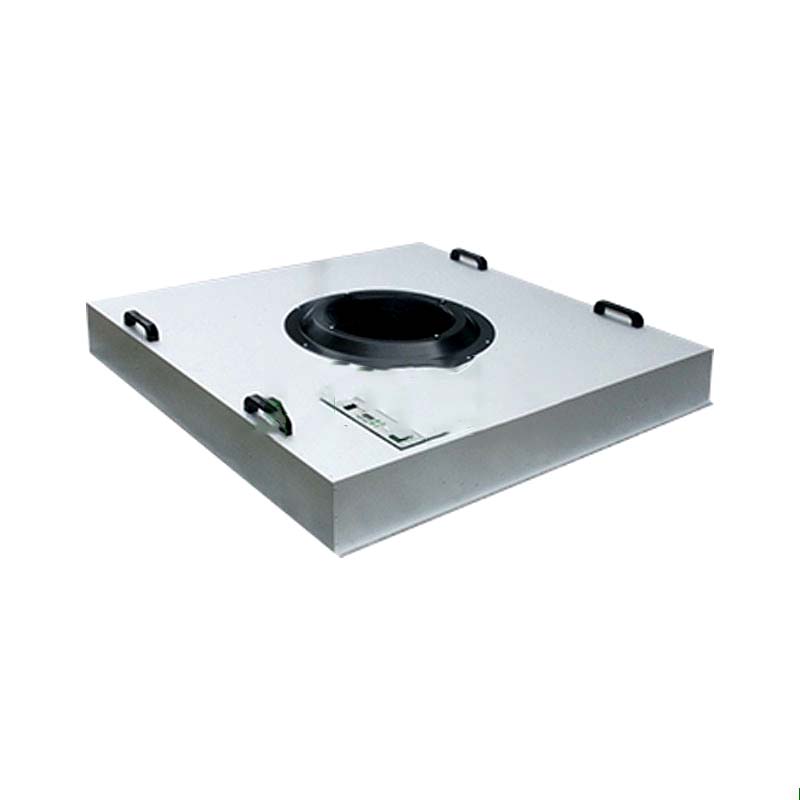

    Air Cleaning Equipment For Clean Room, Efu Fan Filter Unit With Low Noise Photos & Pictures 1655185669

    Model NO.
    HFR
    • Transport Package
    Carton+Wooden Box
    Specification
    10mm*2m*20m
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    10000roll/Year

    Air Purification Dust Free Room Double Blower Cleanroom Air Shower Room Photos 1655104450

    Product Description




    Applies to air filter system which require fireproof,  such as electronic, pharmaceutical, food and other industries, playing a role of preventing and remedying pollution, industrial waste gases, the mist produced during production, fresh air filtering, pre-filter of air conditioner etc.
    Especially suitable as the pre filter of spraying-paint system and spraying-paint workshop.


    Adopts non silicone synthetic fiber, with the feature of high performance and anti-fracture ability. Density of fibers increases gradually, which will block particles of various sizes in different density. It has a high dust-holding capacity, low pressure drop, high permeability, low initial resistance and high dust-holding capacity.
    Multi-layers, density increases step by step.
    Fire-resistance classification is up to German industrial standard: DIN53438-F1.
    Has passed the American UL - 900 fire rating certificate, certificate no. : 20150716 - R38434
    Strong moisture-proof, reach up to 100% relative humidity.
    Can be washed repeatedly.
    Frame can be galvanized steel or aluminum alloy, or add metal mesh as supporter to effectively prevent deformation under high-speed airflow.
    This product can be cutted into slice, pleated into shape and folded into roll.


    Media: Non silicone synthetic fiber.
    Frame: Galvanized steel, aluminum alloy frame with metal mesh as supporter in the air outlet side, effectively prevent deformation under high-speed airflow.
    Temperature resistance: ≤80°C.
    Common Specifications

    Model    		HFR-150HFR-200HFR-240HFR-270HFR-320

    Size    		5mmT×2m×40m10mmT×2m×20m15mmT×2m×20m20mmT×2m×20m25mmT×2m×20m

    Material    		 Modified Polyester

    Thickness    		5mm10mm15mm20mm25mm

    Norm Velocity    		2.0m/s1.5m/s1.0m/s1.0m/s1.0m/s

    Initial Pressure Drop    		20Pa25Pa30Pa34Pa38Pa

    Final Pressure Drop    		125Pa200Pa250Pa280Pa310Pa
     Average Trapping Efficiency68%85%90%94%96%

    Filter Class    		G2G3G4G4G4

    Capacity of Dust Arrestment    		400g/m2600g/m2620g/m2650g/m2680g/m2

    Heat Resistance    		80ºC
    Note: 1. In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
         2. KOSA makes various of other models' HFR filter not listed in above table. Please consult with us if you need.


    1 5Micron Demister Air Filter Photos & Pictures 1655191411
