  • KOSA Htr Temperature Resistance Silica Adhesive Filter

    Clapboard:withClapboardMediumMaterial:FiberglassEfficiency:F6-H14FiltrationGrade:HEPAFilterType:PanelFilterTransportPackage:Carton

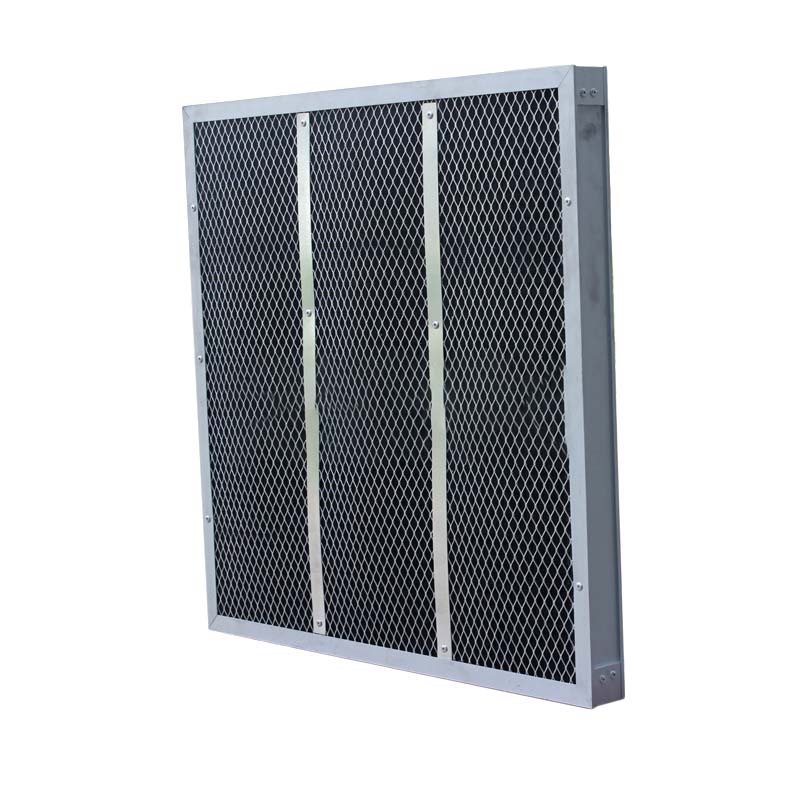

    Activated Carbon Filter For Chemical Lab Photos & Pictures 1655168014

    Model NO.
    HTR
    • Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421399090
    Production Capacity
    500000PCS

    Air Conditioning High Dust Holding G4 Pre Pocket Air Filter Photos & Pictures 1655106326

    Product Description


    Advantages
    1.Filter efficiency ranges from E10 to H14.
    2.Stainless steel frame with special high temperature gasket, operating temperature can reach 400ºC.
    3.Adopt special folding machine for manufacturing.
    4.Use special fiberglass paper as the filter material, good stability of filtration efficiency.
    5.Use special aluminum foil as separator.
    6.Metal meshes as supporter in double sides, effectively protect filter media and make the whole filter in good strength.
    7.Each filter is through rigorous test after anti-evaporation treatment.
    8.Each HEPA filter is tested according to EN1822: 2009.
    9.Passed international UL certification and SGS test report.

    Material Instructions
    1.Media: Special fiberglass paper.
    2.Frame: Stainless steel.
    3.Separator: Special aluminum foil.
    4.Sealant: Special temperature resistant silica gel.
    5.Temperature: up to 400°C high temperature resistant ceramic glue imported from Germany.

    Application
    Suitable for clean drying oven, clean washing machine, chemical industry and other high-temperature air purification equipment and systems.

    Common Specifications
    ModelDimensionsMedia Area (m2)Rated Air Flow (m3/h)Initial Pressure Drop (Pa)
     W×H×D (mm)StandardHigh CapacityStandardHigh CapacityE10H12H13H14
    HTR320320×320×2204.16.1350525≤160≤200≤235≤255
    HTR484/10484×484×2209.614.410001500
    HTR484/15726×484×22014.621.915002250
    HTR484/20968×484×22019.529.220003000
    HTR630/05315×630×2208.112.17501200
    HTR630/10630×630×22016.524.715002250
    HTR630/15945×630×22024.937.322003300
    HTR630/201260×630×22033.450.130004500
    HTR610/03305×305×1502.43.6250375
    HTR610/05305×610×1505.07.5500750
    HTR610/10610×610×15010.215.310001500
    HTR610/15915×610×15015.423.115002250
    HTR610/201220×610×15020.630.920003000
    HTR610/05X305×610×29210.115.110001500
    HTR610/10X610×610×29220.931.320003000
