  • Clean Room H13 H14 HEPA Aluminum Panel Knife-Edge Air Filter

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:FiberglassEfficiency:HEPAFiltrationGrade:HEPAFilterType:PanelFilter

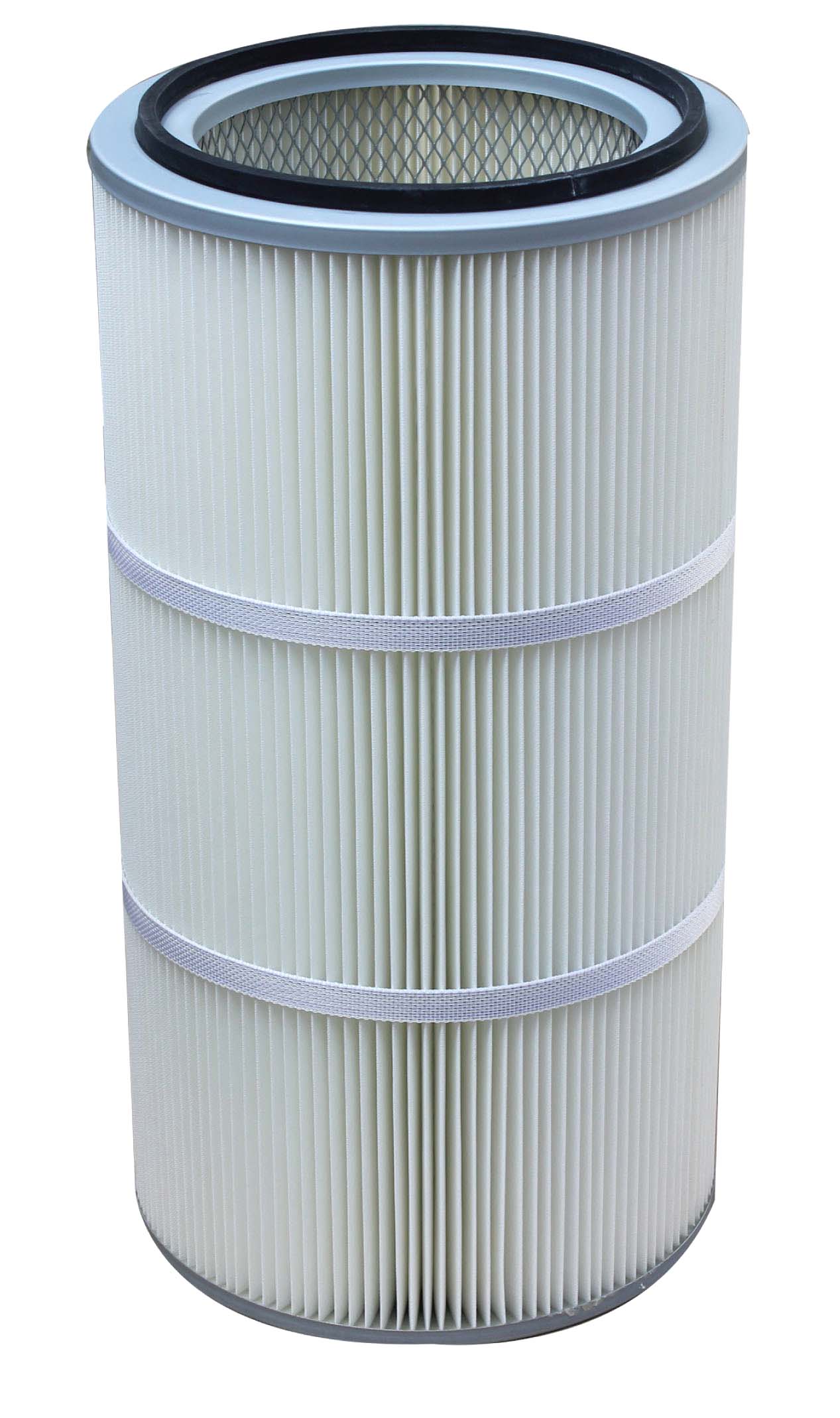

    Air Filter Caridge For Mining Industry Photos & Pictures 1655189247

    Model NO.
    HMK
    • Transport Package
    Carton+Wooden Box
    Specification
    1220x610x220
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    5000PCS/Year

    Air Filter In V Cell Type (In High Air Flow Capacity) Photos & Pictures 1655262098

    Product Description

    Advantages
    Filter efficiency ranges from H14 to U17.
    Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
    Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
    Double side retainers, protect the filter media, good strength.
    Knife-edge structure.
    Light in weight, compact in structure.
    Each ULPA/HEPA filter is tested according to EN1822:2009.

     Material Instructions
    Structure: F-type knife-edge structure.
    Media: Ultra-fine fiberglass filter paper.
    Frame: Anodized aluminum alloy.
    Separator: Hot-melt glue.
    Sealant: Polyurethane.
    Temperature: Maximum 90°C in continuous service.

    Application
    Suitable for gel seal keel, FFU configuration and the occasions require ultra-high cleanliness.

    Common Specifications

    ModelDimensionsMedia Area
    (m2)    		Rated Air Flow
    (m3/h)    		Initial Pressure Drop
    (Pa)
    W×H×D (mm)
    HMK610/03-110F305×305×1103.6320≤250
    HMK610/05-110F305×610×1107.4650
    HMK610/10-110F610×610×11014.71300
    HMK610/15-110F915×610×11022.02000
    HMK610/20-110F1220×610×11029.42600
    .
    KOSAFILTER makes various of other models' HMK filter which are not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
