  • Micron Nylon Mesh Filter for Air Purifier

    Clapboard:withoutClapboardMediumMaterial:NylonMeshFiltrationGrade:PreFilterType:PanelFilterMedia:AdoptMono-FilamentPolyamideBasketworkFrame:Ultra-ThinAluminumFoilasTheFramewithHandle

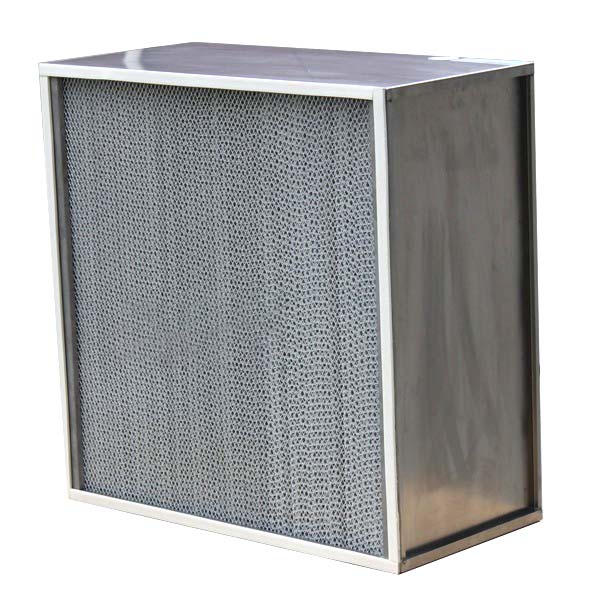

    Air Filter In Temperature Type With Flat And Flange Frame Structure Photos 1655258773

    Model NO.
    HWN
    • Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carbon and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

    Activated Carbon Filter Box Photos & Pictures 1654846783

    Product Description

    Advantages
    Use imported mono-filament polyamide basketwork as filter media, with the characteristics of high wear strength, long service life and good combined effect.
    High dust collection rate, low initial resistance and good dust
    -proof performance, filter media can be washed repeatedly.
    Use ultra-thin aluminum foil as the frame which can be made into a interlinked group with handle. Replacement of the filter is safe, simple and convenient.

    Material Instructions
    Media: Adopt mono-filament polyamide basketwork as filter media.
    Frame: Ultra-thin aluminum foil as the frame with handle.
    Temperature: Maximum 90°C in continuous service.

    Application
    Suitable as pre-filter in ventilation systems of office buildings, conference rooms, hospitals, shopping malls, recreation centers, airports and other huge civil architecture as well as general factories and clean rooms.

    Structure Drawings
    Common Specifications
    ModelDimensionsRated Air Flow (m3/h)Initial Pressure Drop (Pa)Media Area
    (m2)
    W×L×D (mm)
    HWF-500×500×15500×500×154500100.25
    HWF-500×1000/2×15500×1000×1590000.5
    HWF-500×1500/3×15500×1500×15135000.75
    KOSAFILTER makes various of other models' HWN filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
