  • Pleated Panel Activated Carbon Odor Control Filters

    Clapboard:withoutClapboardMediumMaterial:ActivatedCarbonTransportPackage:CarbonandWoodenCaseTrademark:KOSAOrigin:Shanghai
    99.99% Replaceable Synthetic Ahu Hepa Air Filter Photos & Pictures1655280697

    Model NO.
    HACP
    • HS Code
    8421999090

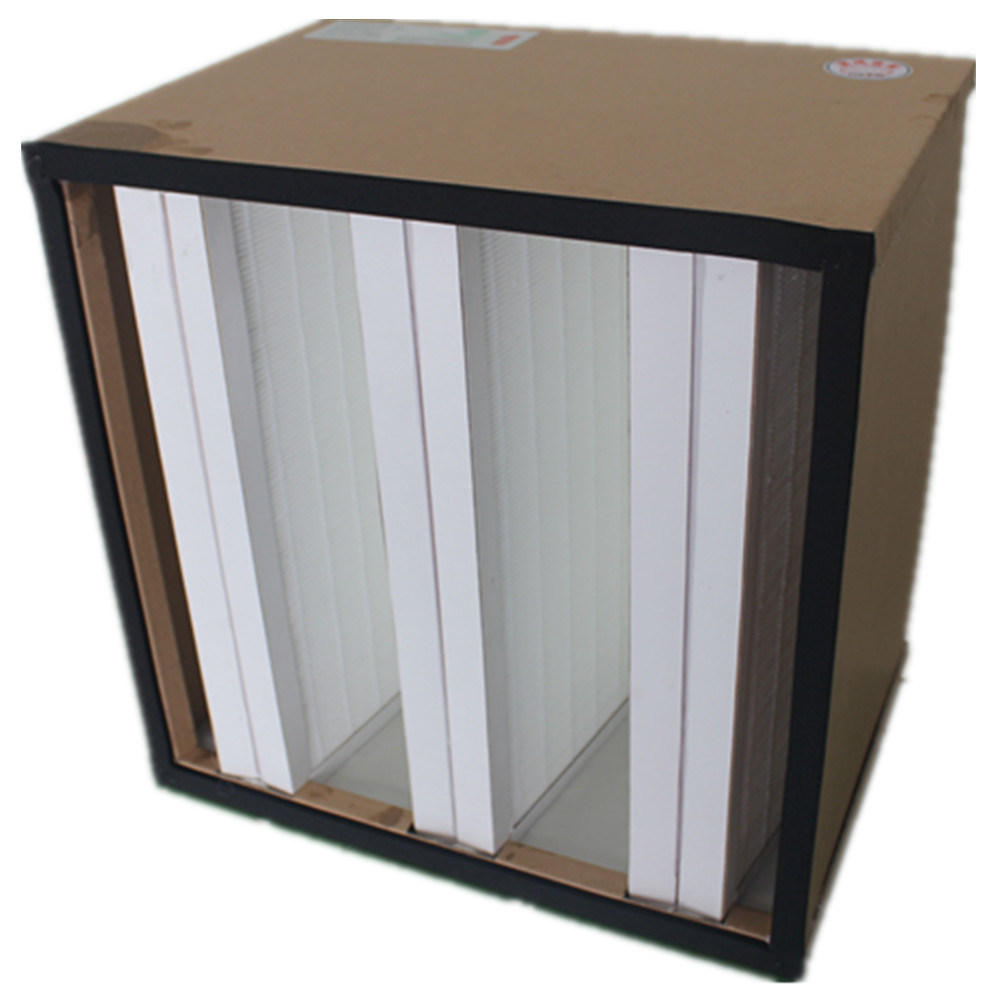

    Aireflow Hc V Bank Hepa Air Filter Photos & Pictures 1655186171

    Product Description


     Advantages
    Made of pleated polyester fiber soaked in activated carbon, effectively remove a variety of odors in the air.
    Reliable performance with high adsorption capacity and removal efficiency.
    Great versatility, light in weight, convenient in installation and maintenance.
    Frame can be aluminum alloy, galvanized steel sheet or stainless steel sheet.

    Material Instructions
    Media: Pleated polyester soaked in activated carbon.
    Frame: Galvanized plate, aluminum alloy sheet, stainless steel sheet.
    Filter media pleated with internal skeleton.


    Common Specifications
    ModelDimensionsRated Air Flow (m3/h)Initial Pressure Drop (Pa)
    W×H×D (mm)
    HACP-24×24×2595×595×45360070
    HACP-12×24×2290×595×451800
    HACP-24×24×4595×595×95360045
    HACP-12×24×4290×595×951800
    HACP-20×24×2493×595×45300070
    HACP-20×20×2493×493×452500
    HACP-12×20×2290×493×451500
    HACP-20×24×4493×595×95300045
    HACP-20×20×4493×493×952500
    HACP-12×20×4290×493×951500
    .KOSAFILTER makes various of other models' HACP filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.


    www.kosafilter.comwww.kosafilter.com



    My Dear Friend:

    Welcome to vist our company and willing to contact us if you need any further support before or after sales:
    SuZhou KoSa Environmental Protection CO.,LTD.
    Address: No.625 Huayuan Road, Zhangpu Town, Kunshan,Jiangsu Province,China
    -------


    Website: www.kosafilter.comwww.kosafilter.com

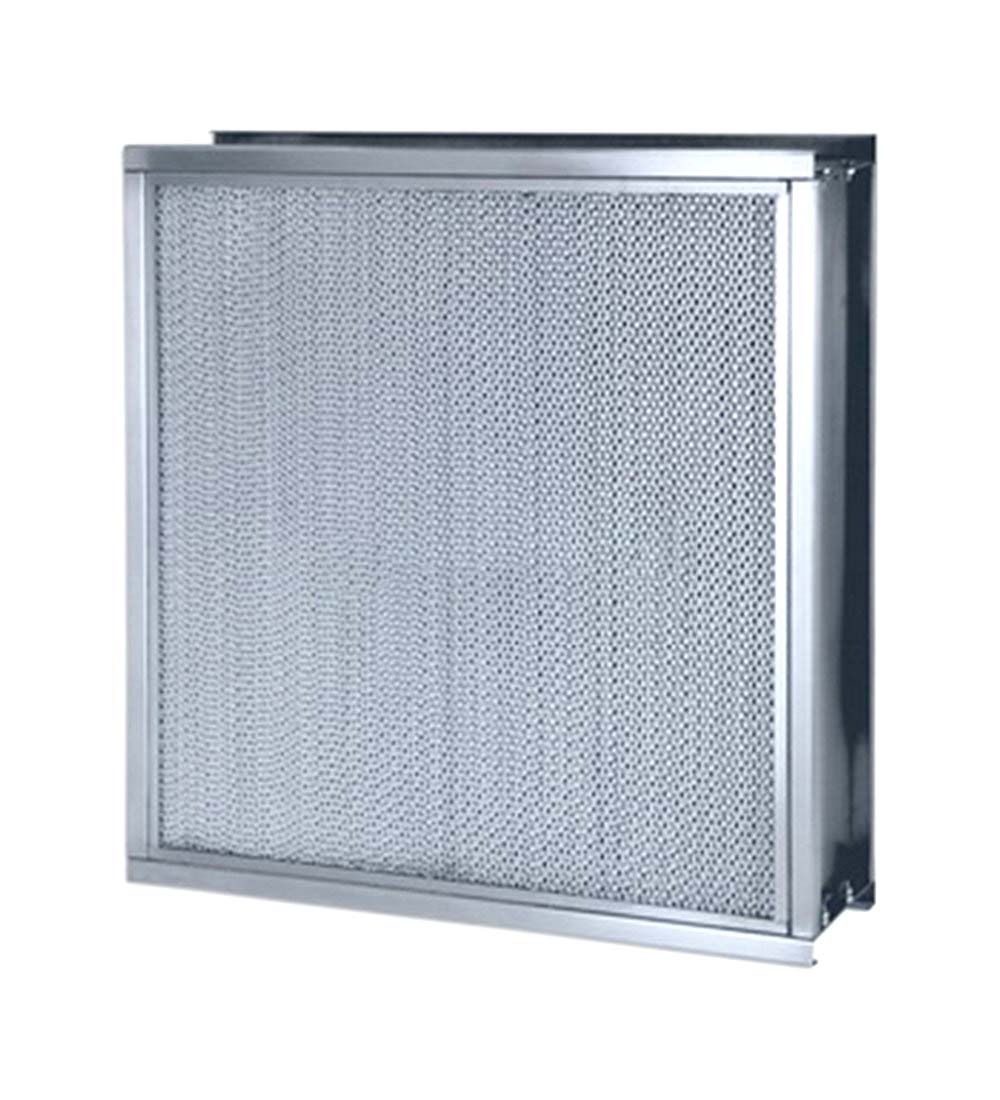

    Air Panel Mini Pleat Hepa Pleat Pack Air Filter Photos 1655186267
