  • Mini-Pleat HEPA Low Resistance Filter

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:PPFiltrationGrade:HEPAFilterTransportPackage:PackedwithCarton+WoodenBoxSpecification:610*610*70

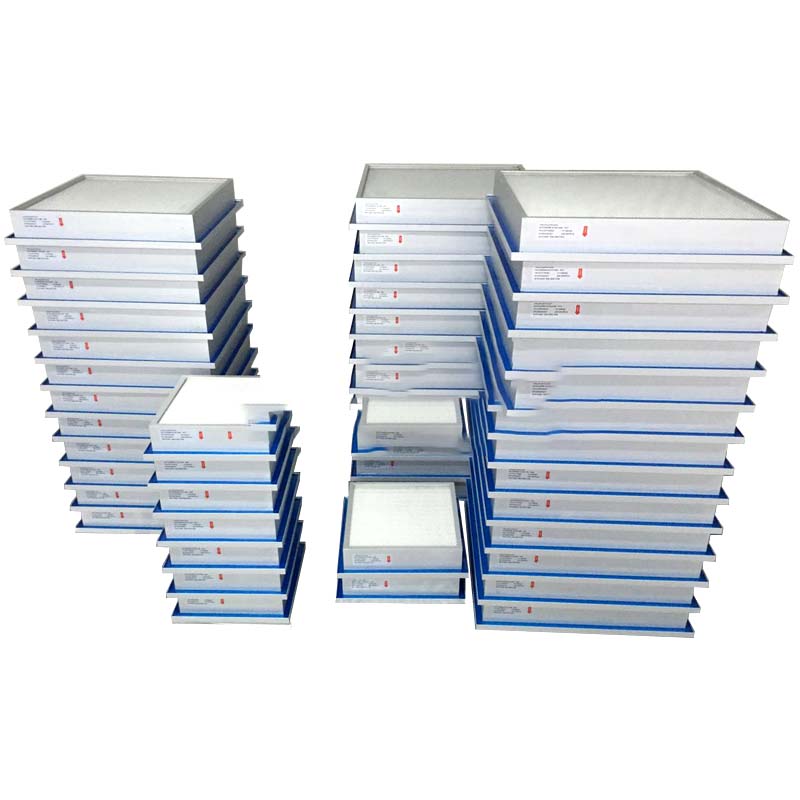

    99.997%@ 0.3 Micron Paricle Gel Seal Hepa Air Filter With Fiberglass Media 1655272043

    Model NO.
    HMP
    • Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    40000PCS/Year

    13″ X 13″ Washable Nylon Mesh Filter Photos & Pictures 1655167484

    Product Description

    Common size:
    ModelDimensionsMedia AreaRated Air FlowInitial Pressure Drop
    W×H×D (mm)(m2)(m3/h)(Pa)
    HMP305/10-50305×305×501.6235≤60@H12
    HMP610/05-50305×610×503.3470
    HMP610/10-50610×610×506.7940
    HMP570/20-501170×570×50121680
    HMP1170/10-501170×1170×50243450

    Application
    Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices and the occasions require ultra-high cleanliness.
    Advantages
    Filter efficiency ranges from E10 to H14.
    Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
    Use polypropylene as the filter material, good stability of filtration efficiency.
    Double side retainers, protect the filter material, good strength.
    Light in weight, compact in structure.
    Each filter is tested according to EN1822:2009.
    Material Instructions
    Media: polypropylene
    Frame: Anodized aluminum or stainless steel.
    Separator: Hot-melt glue.
    Sealant: Polyurethane.
    Temperature: Maximum 90°C in continuous service.
    Structure Drawings


    Air Cleaning Equipment Efu Fan Filter Unit For Clean Room Photos 1655185695
