  • Filter Cartridge (gas turbine in MID efficiency)

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:FiberglassEfficiency:HEPAFiltrationGrade:HEPAFilterType:CartridgeFilter

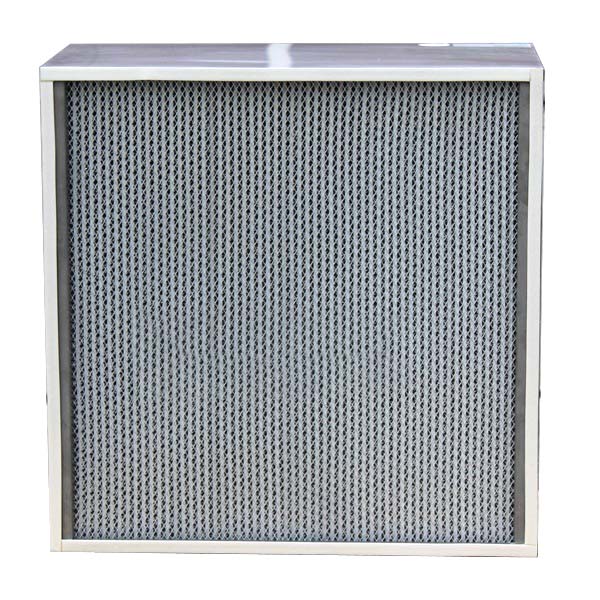

    Air Filter In Temperature Type Used In 150 To 450 Degree Photos 1655259050

    Model NO.
    HCAC
    • Media
    Fiberglass Paper/PTFE
    Transport Package
    Carton+Wooden Box
    Specification
    160*90*380
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    10000psc/Year

    Air Conditioning Bag Filter Fiberglass Pocket Filters Photos 1655270101

    Product Description

    Advantages
    Filter efficiency: 99.99% for the 0.5-5µm particle

    Material Instructions
    1.Use the excellent  PTFE, as filter material, possess the feature of bigger filtering area, with ultra-low resistance features, etc.
    2.The material of ends can be galvanized, stainless steel material.
    3.Guard mesh can be galvanized, stainless steel in inner and outer sides.
    4.The end are generally one is open, the other is closed or open in two ends.
    5.Generally adopts screw connection, convenient in installation.

    Application
    Mainly used as pre-filter for high-efficiency, as well as collecting and filtering dust for gas cleaning system.

    Common Specifications
    ModelDimensions
    (mm)    		Air Flux (m3/min)Filter Fineness
    (μm)    		Filter Efficiency
    (%)    		Allowable Pressure Differential
    (MPa)    		Work Temperature
    (°C)    		Initial Pressure Drop
    (MPa)
    HCAC200-05Φ202×33010~155.0~2095~99.9≤0.08≤600.00016~0.01
    HCAC200-10Φ202×50015~25
    HCAC200-15Φ202×66025~30
    HCAC200-20Φ202×100030~50
    HCAC320-05Φ324×33015~20
    HCAC320-10Φ324×50020~30
    HCAC320-15Φ324×66030~40
    HCAC320-20Φ324×100040~60
    HCAC350-05Φ352×33020~30
    HCAC350-10Φ352×50030~40
    HCAC350-15Φ352×66040~60
    HCAC350-20Φ352×100060~80
    HCAC400-05Φ405×33030~40
    HCAC400-10Φ405×50040~60
    HCAC400-15Φ405×66060~80
    HCAC400-20Φ405×100080~100
    Note: 1. In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
              2. KOSA makes various of other models' HCAC filter not listed in above table. Please consult with us if you need.
