  • Air Filter Cartridge for Industrial Air Clean

    Material:PTFEMediumMaterial:FiberglassCartridgeFilter:WoodPulpPaper,PolyesterPaper,NanoCoatingetcUsage:DustFilterFiltrationGrade:HEPAFilterFilterBagEnvironment:RoomTemperature

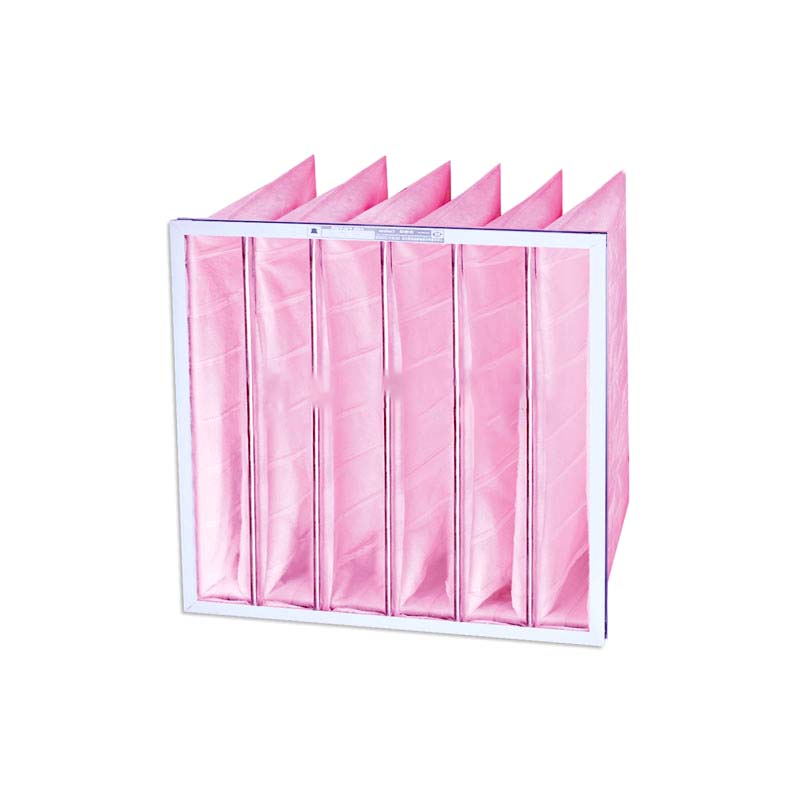

    95% Merv 15 Hvac Synthetic 6 Pocket Air Bag Filter Photos & Pictures 1655172291

    Model NO.
    HCAC
    • Cartridge Installation
    Vertical Lifting
    Name
    Hcac Air Filter Cartridge
    Construction
    Cartridge Filter
    Medium
    Synthetic Fiber
    Filter Bag Shape
    Round Bag
    Transport Package
    Carton, Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

    Air Filter Cartridge (Effiency F6 H14) Photos & Pictures 1655189223

    Product Description

    Advantages
    Filter efficiency: 99.99% for the 0.5-20µm particle

    Material Instructions
    1.Use the excellent polyester, PTFE, wood pulp fiber, ultra-fine fiberglass as filter material, possess the feature of bigger filtering area, low resistance features, etc.
    2.The material of ends can be galvanized, stainless steel material.
    3.Guard mesh can be galvanized, stainless steel in inner and outer sides.
    4.The end are generally one is open, the other is closed or open in two ends.
    5.Generally adopts screw connection, convenient in installation.

    Application
    Mainly used as pre-filter for high-efficiency, as well as collecting and filtering dust for gas cleaning system.

    Structure Drawings


    Common Specifications
    ModelDimensions
    (mm)    		Air Flux (m3/min)Filter Fineness
    (μm)    		Filter Efficiency
    (%)    		Allowable Pressure Differential
    (MPa)    		Work Temperature
    (°C)    		Initial Pressure Drop
    (MPa)
    HCAC200-05Φ202×33010~155.0~2095~99.9≤0.08≤600.00016~0.01
    HCAC200-10Φ202×50015~25
    HCAC200-15Φ202×66025~30
    HCAC200-20Φ202×100030~50
    HCAC320-05Φ324×33015~20
    HCAC320-10Φ324×50020~30
    HCAC320-15Φ324×66030~40
    HCAC320-20Φ324×100040~60
    HCAC350-05Φ352×33020~30
    HCAC350-10Φ352×50030~40
    HCAC350-15Φ352×66040~60
    HCAC350-20Φ352×100060~80
    HCAC400-05Φ405×33030~40
    HCAC400-10Φ405×50040~60
    HCAC400-15Φ405×66060~80
    HCAC400-20Φ405×100080~100
    Note: 1. In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
              2. KOSA makes various of other models' HCAC filter not listed in above table. Please consult with us if you need.
