  • DOP Tested Formaldehyde HEPA Filter Based on En1822

    Clapboard:withoutClapboardMediumMaterial:FiberglassEfficiency:H13FiltrationGrade:HEPAFilterType:BoxTypeMedia:SpecialFiberglassPaper
    Air Filter Cartridge (Gas Turbine Mid Efficiency) Photos 1655256243

    Model NO.
    HCHO
    • Frame
    Stainless Steel
    Separator
    Special Aluminum Foil.
    Sealant
    Special Temperature Resistant Silica Gel
    Temperature
    250°c-350°c
    Transport Package
    Carton and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai
    HS Code
    8421999090

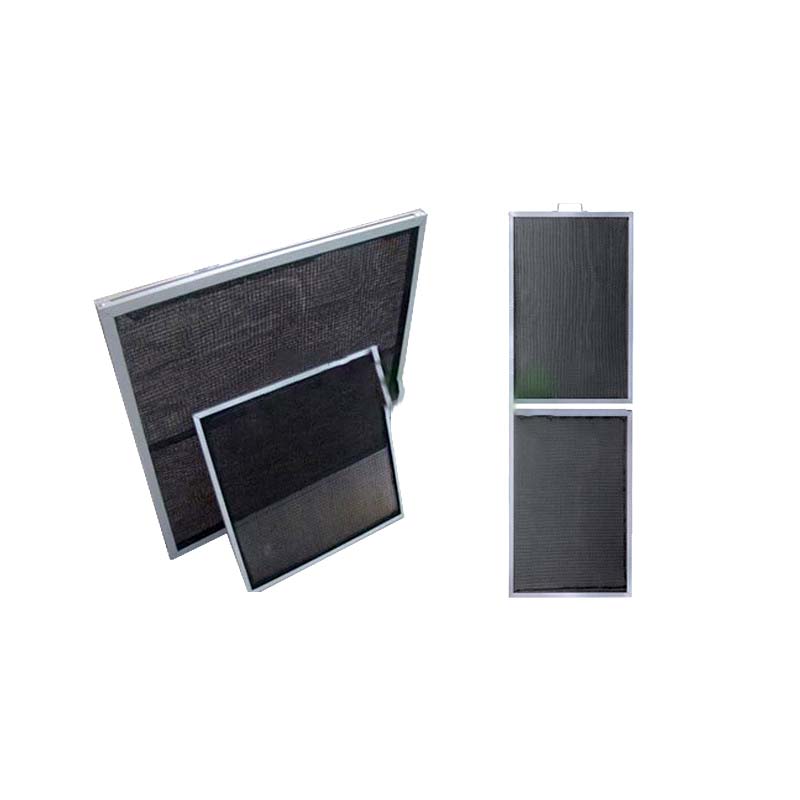

    100 Micron Nylon Filter Air Mesh For Central Air Conditioning And Household Air Conditioner Photos 1655177601

    Product Description


    Application
    HCHO series of air filter is designed for formaldehyde industry specially
    Material Instructions
    Media: Special fiberglass paper.
    Frame: Stainless steel.
    Separator: Special aluminum foil.
    Sealant: Special temperature resistant silica gel.
    Temperature: German imported siliconfree Sealant , can operate in 150ºC-180ºC continuously;
    Structure Drawings

    Common Specifications
      ModelDimensionsMedia Area (m2)Rated Air Flow (m3/h)Initial Pressure Drop (Pa)
    W×H×D (mm)  StandardHigh Capacity  StandardHigh CapacityE10H12H13H14
    HCHO320320×320×2204.16.1350525≤160≤200≤235≤255
    HCHO484/10484×484×2209.614.410001500
    HCHO484/15726×484×22014.621.915002250
    HCHO484/20968×484×22019.529.220003000
    HCHO630/05315×630×2208.112.17501200
    HCHO630/10630×630×22016.524.715002250
    HCHO630/15945×630×22024.937.322003300
    HCHO630/201260×630×22033.450.130004500
    HCHO610/03305×305×1502.43.6250375
    HCHO610/05305×610×1505.07.5500750
    HCHO610/10610×610×15010.215.310001500
    HCHO610/15915×610×15015.423.115002250
    HCHO610/201220×610×15020.630.920003000
    HCHO610/05X305×610×29210.115.110001500
    HCHO610/10X610×610×29220.931.320003000.

    KOSAFILTER makes various of other models' HTR filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve
    Website:www.kosafilter.com

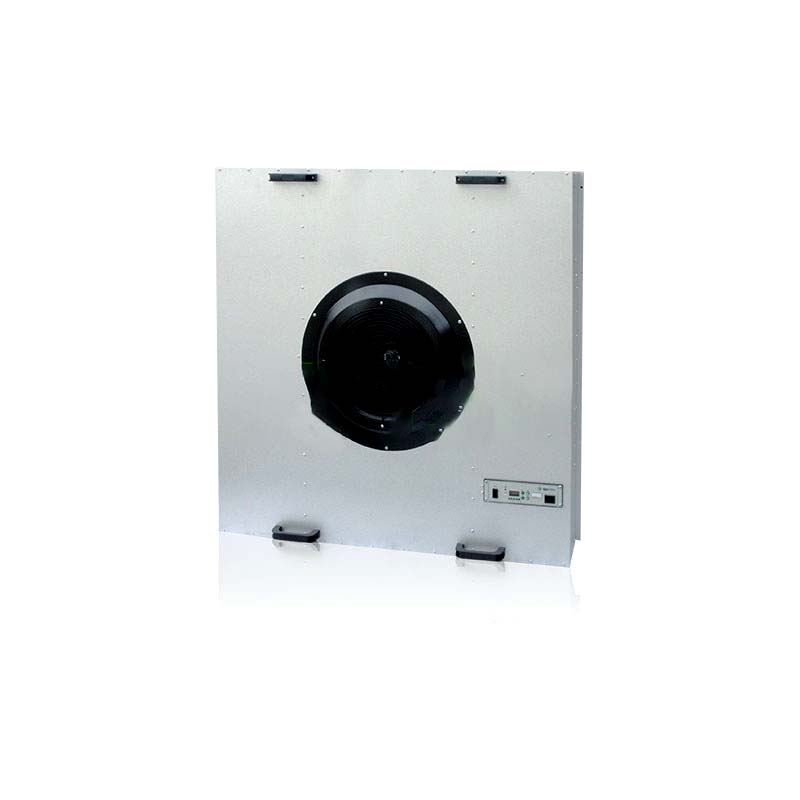

    Air Cleaning Equipment For Clean Room, Efu Fan Filter Unit With Low Noise Photos & Pictures 1655185679
