  • Air Filter in Temperature Type with Flat and Flange Frame Structure

    Clapboard:withClapboardMediumMaterial:FiberglassEfficiency:F8-H14FiltrationGrade:HEPAFilterType:BoxFilterName:HEPAAirFilterH13AluminiumFilterSeparatorFil

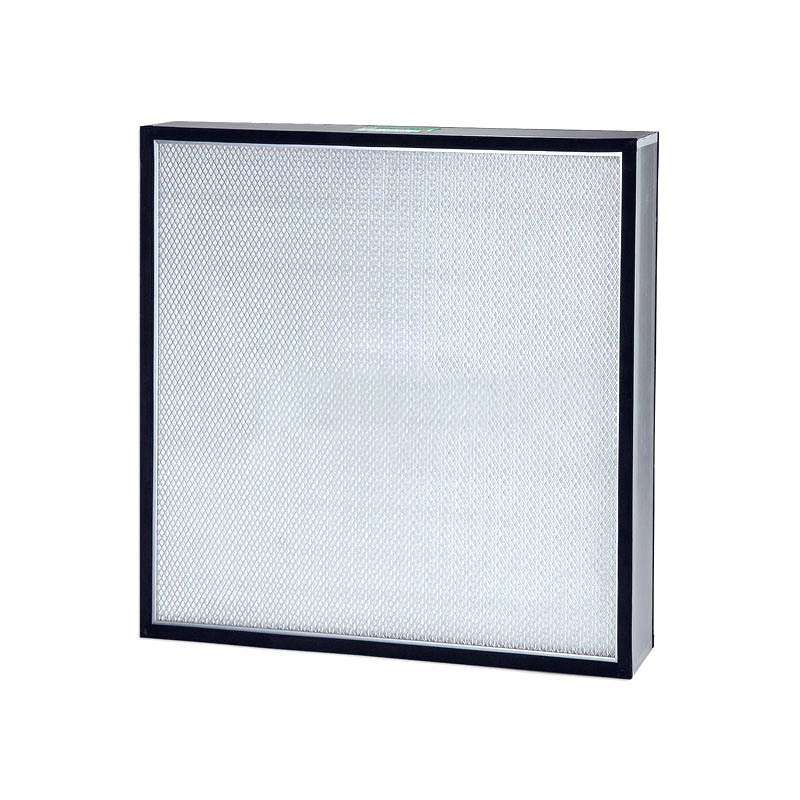

    Air Cleaner Machine Mini Pleated Hepa Air Filter Photos & Pictures 1655171034

    Model NO.
    HTR
    • Media
    Ultra-Fine Fiberglass Filter Pape
    Frame
    Aluminum Alloy, Wood, Galvanized or Stainless Stee
    Structure
    Box Type, Single Header or Double Flanges.
    Separator
    Aluminum or Paper Foil.
    Sealant
    Polyurethane or Temperature Resistant Gel.
    Temperature
    150-450 Degree
    Transport Package
    Carton and Wooden Case
    Specification
    610*610*150
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090

    Air Panel Gel Seal Mini Pleat Hepa Filter Photos 1655186372

    Product Description




    Advantages
    Filter efficiency ranges from E10 to H14.
    Stainless steel frame with special high temperature gasket, operating temperature can reach 250ºC or 350ºC.
    Adopt special folding machine for manufacturing.
    Use special fiberglass paper as the filter material, good stability of filtration efficiency.
    Use special aluminum foil as separator.
    Metal meshes as supporter in double sides, effectively protect filter media and make the whole filter in good strength.
    Each filter is through rigorous test after anti-evaporation treatment.
    Each HEPA filter is tested according to EN1822: 2009.
    Passed international UL certification and SGS test report.

    Advantages
    Media: Special fiberglass paper.
    Frame: Stainless steel.
    Separator: Special aluminum foil.
    Sealant: Special temperature resistant silica gel.
    Temperature: 250°C-350°C in continuous service, will reach up to 400°C if added high temperature resistant ceramic glue imported from Germany.

    Common Specifications

    Model
    Dimensions
    Media Area (m2)
    Rated Air Flow (m3/h)
    Initial Pressure Drop (Pa)
    W×H×D (mm)StandardHigh Capacity  StandardHigh CapacityE10H12H13H14
    HTR320320×320×2204.16.1350525≤160≤200≤235≤255
    HTR484/10484×484×2209.614.410001500
    HTR484/15726×484×22014.621.915002250
    HTR484/20968×484×22019.529.220003000
    HTR630/05315×630×2208.112.17501200
    HTR630/10630×630×22016.524.715002250
    HTR630/15945×630×22024.937.322003300
    HTR630/201260×630×22033.450.130004500
    HTR610/03305×305×1502.43.6250375
    HTR610/05305×610×1505.07.5500750
    HTR610/10610×610×15010.215.310001500
    HTR610/15915×610×15015.423.115002250
    HTR610/201220×610×15020.630.920003000
    HTR610/05X305×610×29210.115.110001500
    HTR610/10X610×610×29220.931.320003000
    KOSAFILTER makes various of other models' HTR filter not listed in above table. Please consult with us if you need.
