  • Industrial Air Cartridge Filter Dust Collector HEPA Cartridge

    Material:FiberglassMediumMaterial:FiberglassCartridgeFilter:WoodPulpPaper,PolyesterPaper,NanoCoatingetcUsage:DustFilterFiltrationGrade:HEPAFilterFilterBagEnvironment:RoomTemperature
    Air Filter Washable Nylon Filter For Air Condition Photos & Pictures 1655167629

    Model NO.
    HCAC
    • Cartridge Installation
    Vertical Lifting
    Name
    Hcac Air Filter Cartridge
    Construction
    Cartridge Filter
    Medium
    Synthetic Fiber
    Transport Package
    Carton, Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

    Air Conditioning En779 F5, F6, F7 Honeycomb Carbon Air Filter Photos & Pictures 1655195541

    Product Description

    Advantages
    Filter efficiency: 99.99% for the 0.5-20µm particle

    Material Instructions
    1.Use the excellent polyester, PTFE, wood pulp fiber, ultra-fine fiberglass as filter material, possess the feature of bigger filtering area, low resistance features, etc.
    2.The material of ends can be galvanized, stainless steel material.
    3.Guard mesh can be galvanized, stainless steel in inner and outer sides.
    4.The end are generally one is open, the other is closed or open in two ends.
    5.Generally adopts screw connection, convenient in installation.

    Application
    Mainly used as pre-filter for high-efficiency, as well as collecting and filtering dust for gas cleaning system.

    Structure Drawings


    Common Specifications
    ModelDimensions
    (mm)    		Air Flux (m3/min)Filter Fineness
    (μm)    		Filter Efficiency
    (%)    		Allowable Pressure Differential
    (MPa)    		Work Temperature
    (°C)    		Initial Pressure Drop
    (MPa)
    HCAC200-05Φ202×33010~155.0~2095~99.9≤0.08≤600.00016~0.01
    HCAC200-10Φ202×50015~25
    HCAC200-15Φ202×66025~30
    HCAC200-20Φ202×100030~50
    HCAC320-05Φ324×33015~20
    HCAC320-10Φ324×50020~30
    HCAC320-15Φ324×66030~40
    HCAC320-20Φ324×100040~60
    HCAC350-05Φ352×33020~30
    HCAC350-10Φ352×50030~40
    HCAC350-15Φ352×66040~60
    HCAC350-20Φ352×100060~80
    HCAC400-05Φ405×33030~40
    HCAC400-10Φ405×50040~60
    HCAC400-15Φ405×66060~80
    HCAC400-20Φ405×100080~100
    Note: 1. In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
              2. KOSA makes various of other models' HCAC filter not listed in above table. Please consult with us if you need.



    Website:www.kosafilter.com

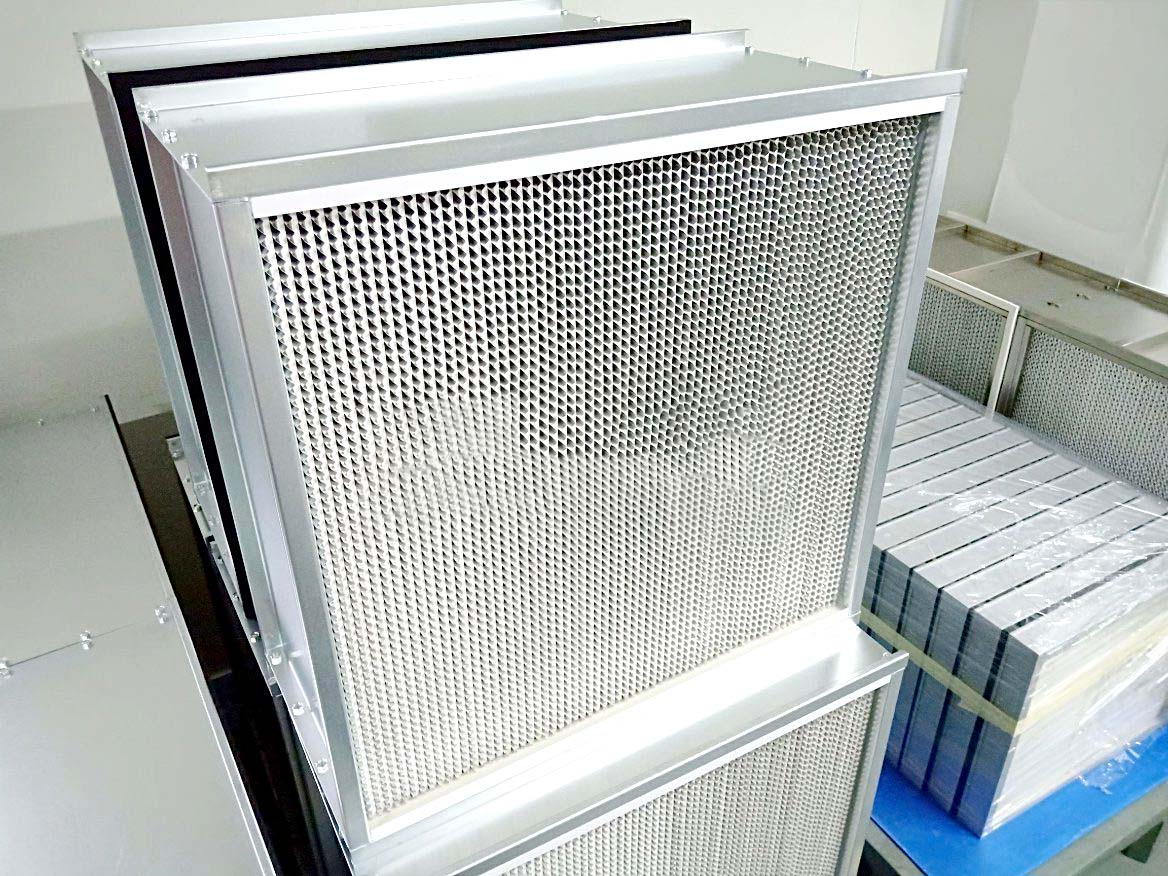

    99.995% 400 Degree Ss Frame High Temperature Hepa Air Filter For Chemical Industry 1655278494
