  • H13 HEPA Diifuser (with HEPA filter and diffuser panel)

    Clapboard:withoutClapboardMediumMaterial:FiberglassEfficiency:H13-U17FiltrationGrade:HEPAFilterType:PanelFilterName:PortableHEPAMini-PleatPanelFilterforHospital
    Air Filter Industry Air Conditioner Nylon Filter Mesh Photos & Pictures 1655177903

    Model NO.
    HHD
    • Media
    Ultra-Fine Fiberglass Filter Paper
    Frame
    Anodized Aluminum or Stainless Steel
    Separator
    Hot-Melt Glue
    Sealant
    Polyurethane
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carton and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

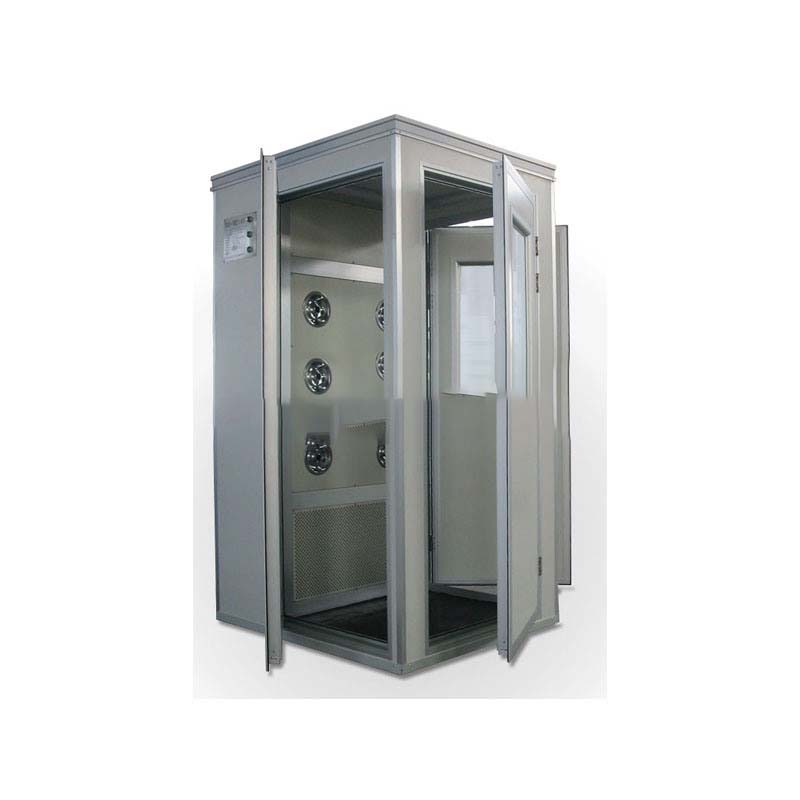

    Air Show Room Automatic Interlock Ss304 Class 100 Cleanroom Double Air Flow Air Shower Photos 1655104652

    Product Description






    Application
    Suitable for installation of HEPA filter in air-conditioning and ventilation systems. To ensure air flow speed and prevent swirl availably.

    Advantages
    Box casing is made of high-quality cold-rolled steel plate.
    Box surface is electrostatic spray.
    Elegant appearance with compact structure, convenience in installation and maintenance.
    The panel in air outlet can be made of aluminum plate or cold rolled steel plate coating or stainless steel.

    Material Instructions
    Casing material: Cold-rolled steel which is treated by electrostatic spray.
    Filter media: Ultra-fine fiberglass paper.
    Diffuser panel: Air outlet panel material is aluminum plate, cold-rolled steel plate with electrostatic spray or stainless steel.
    L type is gel seal HEPA diffuser; M type is mini pleat HEPA diffuser; T type is separator HEPA diffuser.
    Air supply mode: lateral inlet or top inlet.
    Sealing gasket: Sealing gasket in air inletting side.
    Sealing way: Gasket seal and gel seal.
    Temperature: Maximum 90°C in continuous service.

    Common Specifications

    Model
    Rated Air Flow
    (m3/h)    		HEPA
    Mountable HEPA
     (mm)    		 Box Size (mm)
    Air Supply Size (mm)
    Plate Size
    (mm)

    Lateral Inlet
    Top Inlet
    Lateral Inlet
    Top Inlet
    HHD320/10-T350320×320×220375×375×550375×375×390200×200200×200430×430
    HHD484/10-T1000484×484×220540×540×550540×540×390320×200250×250594×594
    HHD484/15-T1500726×484×220782×540×550782×540×390400×250400×250836×594
    HHD484/20-T2000968×484×2201024×540×5501024×540×390500×200400×2501078×594
    HHD610/05-T500305×610×150665×360×480665×360×320250×200250×200720×415
    HHD610/10-T1000610×610×150665×665×480665×665×320320×250320×250720×720
    HHD610/15-T1500915×610×150970×665×480970×665×320500×250500×2501025×720
    HHD610/20-T20001219×610×1501275×665×4801275×665×320500×250630×2501330×720
    HHD630/05-T750315×630×220685×370×550685×370×390250×200250×200740×425
    HHD630/10-T1500630×630×220685×685×550685×685×390320×250320×320740×740
    HHD630/15-T2200945×630×2201000×685×5501000×685×390500×250500×3201055×740
    HHD630/20-T30001260×630×2201315×685×5501315×685×390600×250630×3201370×740
    HHD320/10-M350320×320×80375X375X420375X375X260200X200200X200430X430
    HHD484/10-M800484×484×80540×540×420540×540×260320×200320X200594×594
    HHD484/15-M1200726×484×80782×540×420782×540×260400×200400x200836×594
    HHD484/20-M1700968×484×801024X540X4201024×540×260400×250500X2001078×594
    HHD610/10-M1000610×610×69665×665×420665×665×260400×250320X320720×720
    HHD610/15-M1500915×610×69970×665×420970×665×260500×250500x2501025×720
    HHD610/20-M20001220×610×691275X665X4201275×665×260500×250500X2501330×720
    HHD630/10-M1500630×630×80685×685×420685×685×260400×250320X320740×740
    HHD630/15-M2150945×630×801000X685X4201000×685×260500×250500X2501055×740
    HHD630/20-M30001260×630×801315X685X4201315×685×260600×250630X2501370×740
    HHD320/10-L350320×320×93375×375×420375×375×260200×200200X200430×430
    HHD484/10-L800484×484×93540×540×420540×540×260320×200320X200594×594
    HHD484/15-L1200726×484×93782×540×420782×540×260400×250400X200836×594
    HHD484/20-L1700968×484×931024X540X4201024×540×260400×250320X2001078×594
    HHD610/10-L1000610×610×93665×665×420665×665×260320×250320X250720×720
    HHD610/15-L1500915×610×93970×665×420970×665×260500×250200X2001025×720
    HHD610/20-L20001220×610×931275X665X4201275×665×260500×250320X2501330×720
    HHD630/10-L1500630×630×93685×685×420685×685×260320×250320X250740×740
    HHD630/15-L2150945×630×931000X685X4201000×685×260500×250320X2501055×740
    HHD630/20-L30001260×630×931315X685X4201315×685×260600×250500X3201370×740

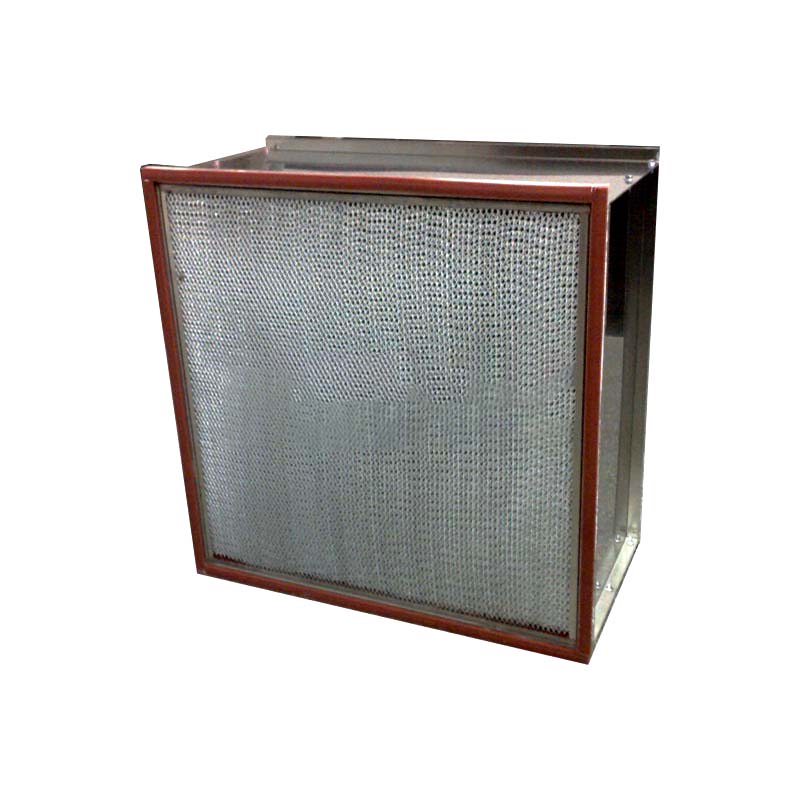

    99.99% Customized High Temperature Hepa Filter Best Home Hepa Filter Photos 1655190079
