  • U15 Gel Seal Mini-Pleat HEPA Air Filter for HEPA Box

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:NonwovenFabricEfficiency:F6FiltrationGrade:MediumFilterType:PanelFilter

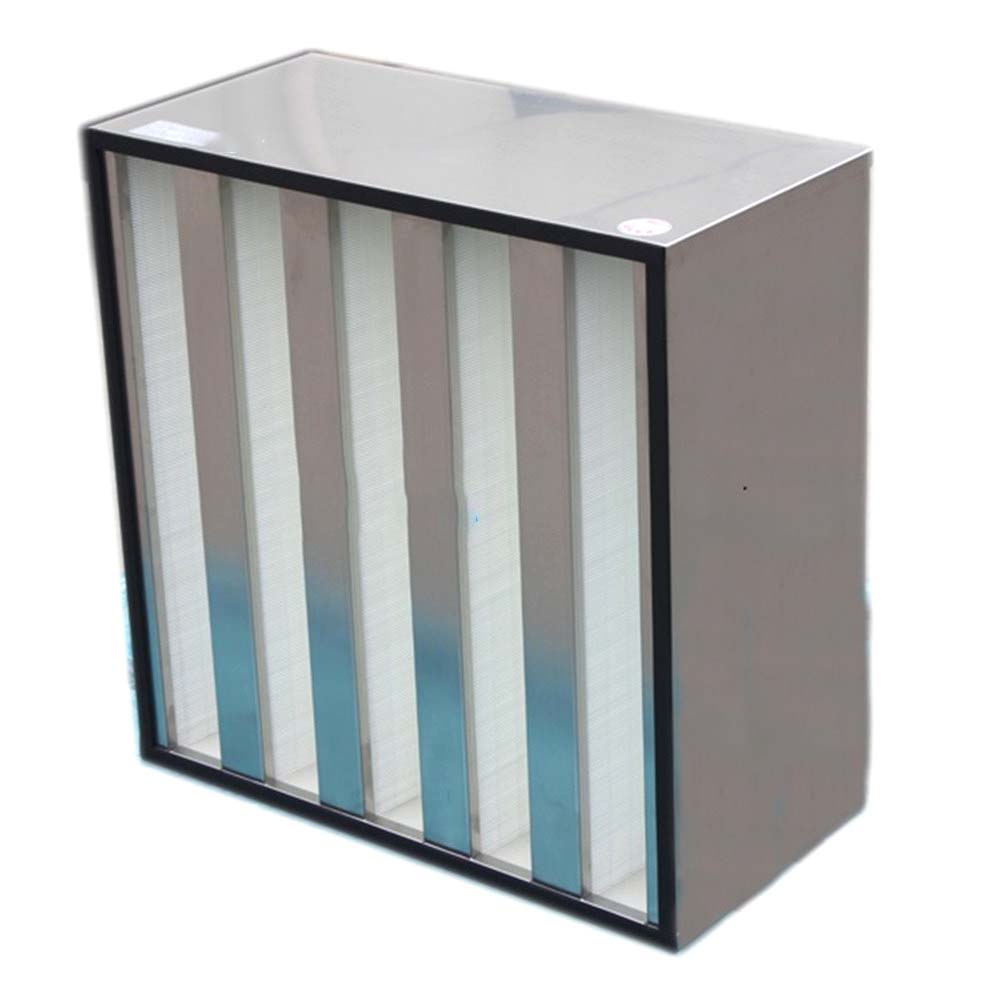

    Aireflow Hc V Bank Hepa Air Filter Photos & Pictures In1655186152

    Model NO.
    HMG
    • Media
    Non-Woven Fabrics with Pleated Mesh Supporter
    Frame
    Galvanized Plate
    Structure
    Single Header
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carton/Wooden Case
    Specification
    290x595x46mm
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    2500PCS

    Air Capacity Filter In V Type Photos 1655189722

    Product Description


    Application
    Suitable for the electronics, bio-pharmaceutical, machinery, instrumentation, petrochemical and light industry as general air purification systems.
    Advantages
    Filtration efficiency rating from M5 to F9, traps 65~95% of ≥1.0μm particles.
    Use special low-resistance and high-throughput non-woven fabrics as the filter material, with high dust-holding capacity.
    Frame can be made of galvanized steel sheet, stainless steel sheet, aluminum alloy or ABS plastic.
    Meet EN779:2012.
    Material Instructions
    Media: Non-woven fabrics with pleated mesh supporter or metal pillar.
    Frame: Galvanized plate, aluminum, stainless steel plate or plastic.
    Structure: Box type, single header or double flanges type.
    Temperature: Maximum 90°C in continuous service.
    Structure Drawings
     Common Specifications
      ModelDimensions  No. of FoldsMedia Area (m2)Initial Pressure Drop (Pa) @ Air Flow (m3/h)
    W×H×D (mm)M5
    40~45%    		M6
    60~65%    		F7
    80~85%    		F8
    90~95%
    HPM-12×24×2290×595×4690.4640@25060@25070@250100@250
    HPM-24×24×2595×595×46170.940@50060@50070@500100@500
    HPM-12×24×3290×595×6990.740@40060@40070@400100@400
    HPM-24×24×3595×595×69171.440@79060@79070@790100@790
    HPM-12×24×4290×595×9090.940@50060@50070@500100@500
    HPM-24×24×4595×595×90171.840@100060@100070@1000100@1000
    HPM-12×24×6290×595×15091.540@85060@85070@850100@850
    HPM-24×24×6595×595×150173.040@170060@170070@1700100@1700
    HPM-12×24×12290×595×29293.040@170060@170070@1700100@1700
    HPM-24×24×12595×595×292176.040@340060@340070@3400100@3400.
    KOSAFILTER makes of various other models' HPM filter not listed in above table. Please consult with us if you need.
     The Initial Pressure Drop and Rated Air Flow Performance Curve





    Air Conditioning Pocket Filter Medium Filter For Hvac System Photos & Pictures 1655173837
