  • Medium Effect Activated Carbon Filter for Cigarettes

    Clapboard:withoutClapboardMediumMaterial:ActivatedCarbonType:VBankFilterMedia:ColumnarActivatedCarbonGranularFrame:ABSPlasticTemperature:Temperature

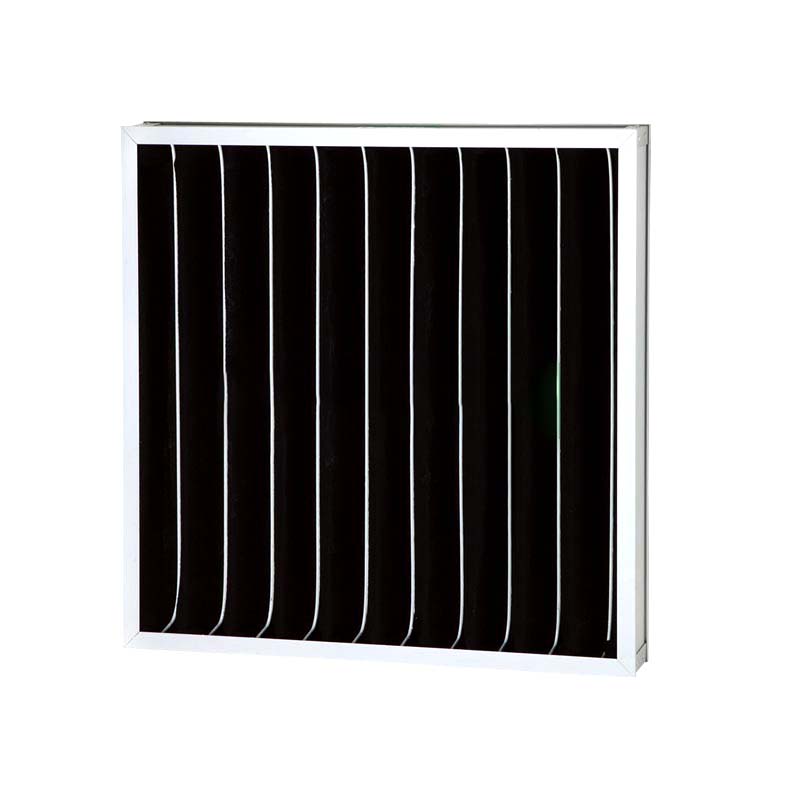

    Activated Carbon Panel Filter Photos & Pictures 1654847281

    Model NO.
    HACH
    • Transport Package
    Carbon and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai
    HS Code
    8421999090

    Air Filter Kosa Equipment Manufacturing Co., Ltd. Page 3.=1654849523

    Product Description

    Advantages
    Columnar activated carbon granule with a special chemical formula treatment.

    High adsorption capacity, light in weight, easy to install.

    Material Instructions
    Media: Columnar activated carbon granular.
    Frame: ABS plastic.
    Temperature: Maximum 90°C in continuous service.

    Application
    Especially designed for central air conditioning and central ventilation system, eliminate the odor (smell) and harmful gases in air.
    A variety of special activated carbon materials can be provided according to the actual needs, effectively absorb gases such as VOC, acid gas, alkaline gas, formaldehyde, mercury vapor as well as radioactive gases.

    Structure Drawings


    Common Specifications
    ModelDimensions
    W×H×D (mm)    		Structural StyleRemoval Efficiency
    (%)    		Carbon Content (kg)Weight
    (kg)    		Pressure Drop (Pa) @ Air Flow (m3/h)
    Honeycomb TypeFilled Type   Honeycomb TypeFilled Type
    HACH2412-4V592×287×2924V
    ABS/GL Frame
    25mm Header    		85~954.05.08.0~9.0180@1800230@1800
    HACH2424-4V592×592×2928.5/16.5~17180@3600230@3600


    KOSAFILTER makes various of other models' HACH filter not listed in above table. Please consult with us if you need.

    The Pressure Drop and Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.




    Air Filter In V Bank Type (En779 En1822) Photos & Pictures 1655261993
