  • High Quality Primary Panel Filter G3 Air Conditioner Filter

    Clapboard:withoutClapboardMediumMaterial:NonwovenFabricEfficiency:G3-M5FiltrationGrade:PreFilterType:PanelFilterStracture:FlatStructure

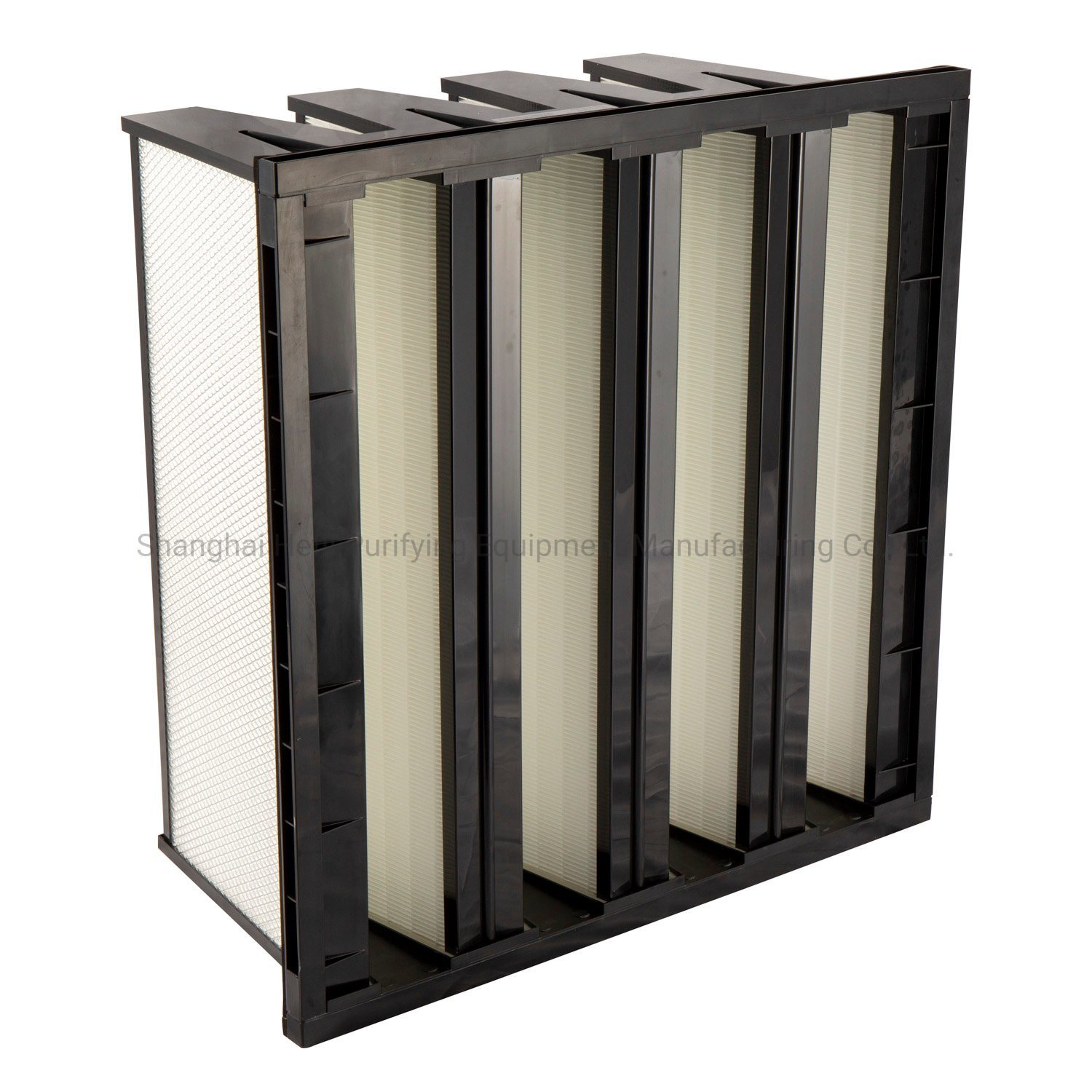

    Air Filter In V Structure (Ul Approved) Photos & Pictures 1655189740

    Model NO.
    HPF
    • Frame
    Galvanized Steel Sheet, Stainless Steel Sheet,
    Guard Mesh
    Galvanized, Aluminum Alloy etc
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carbon and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

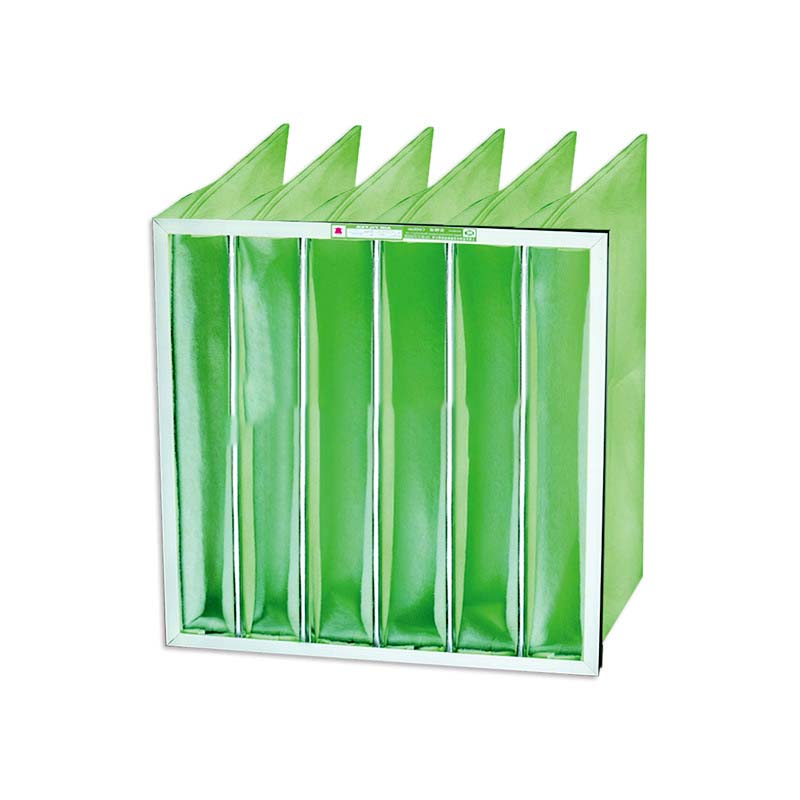

    Air Conditioning Non Woven Hvac Pocket Air Filter G3 G4 Photos & Pictures 1655106299

    Product Description

    Advantages
    Filter efficiency ranges from G3 to M5,traps 40~60% of
     ≥5.0μm particles.
    Use special low-resistance and high-throughput non-woven fabrics as the filter media, with high dust-holding capacity.
    There are galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic frame.
    Meet EN779:2012.

    Material Instructions
    Media: Non-woven fabrics, flat structure.
    Frame: Galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic.
    Guard mesh: Galvanized, aluminum alloy, welding square guard mesh in both sides.
    Temperature: Maximum 90°C in continuous service.

    Application
    Suitable as pre-filter used to protect high-performance filters, clean room ventilation system filters and applies to airport, subway, shopping malls and other places of public services.

    Primary Filter: G3 to M5

    Structure Drawings
    Common Specifications
    ModelDimensionsRated Air Flow (m3/h)Initial Pressure Drop (Pa)Media Area
    (m2)
    W×H×D (mm)StandardHigh CapacityStandardHigh Capacity
    HPF-500×500×25500×500×2512002400≤20≤500.25
    HPF-500×500×20500×500×20
    HPF-500×500×15500×500×15
    HPF-595×595×25595×595×25170034000.35
    HPF-595×595×20595×595×20
    HPF-595×595×15595×595×15
    KOSAFILTER makes various of other models' HPF filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
