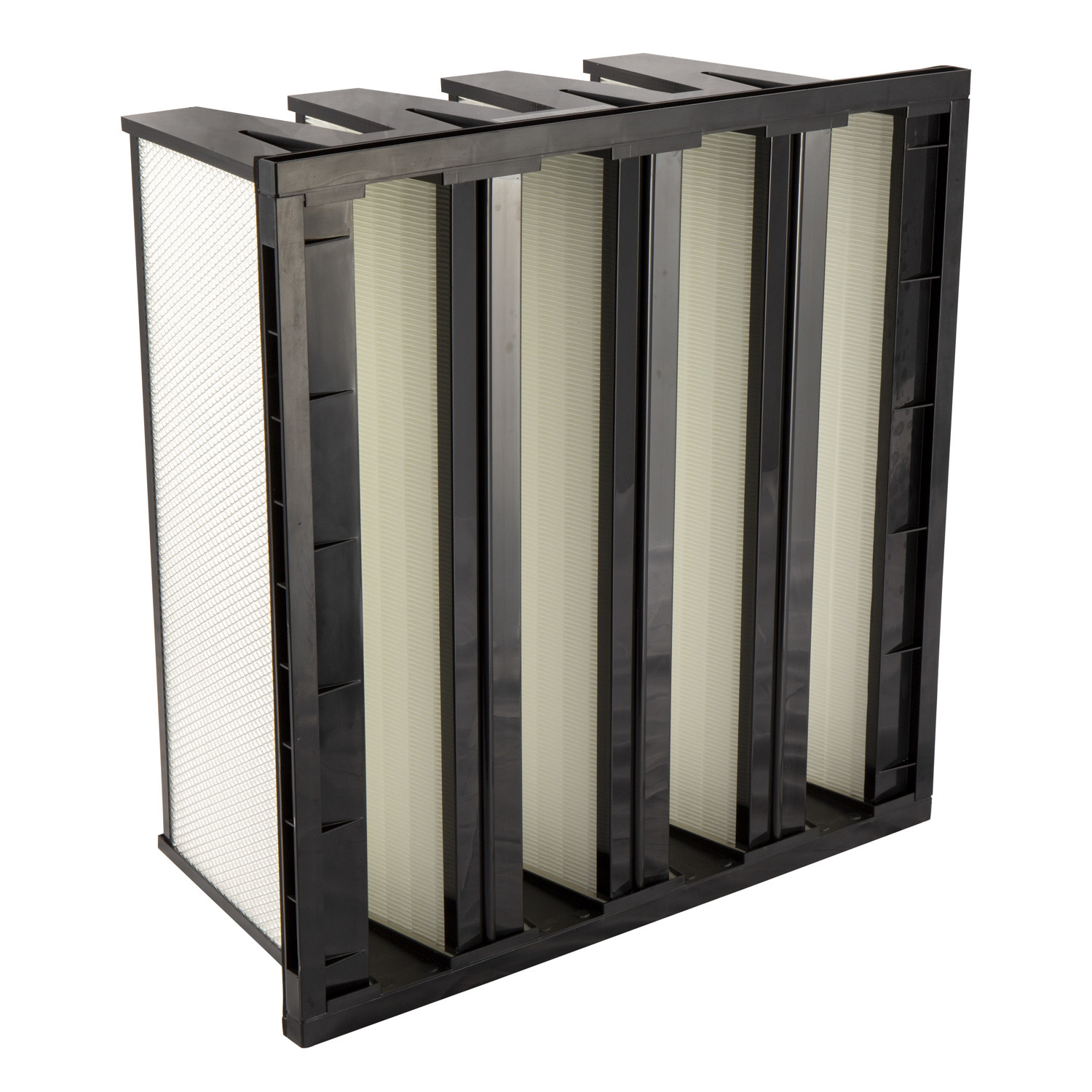

AUTHOR : admin FROM : www.kosafilter.com ADD TIME : 2026-06-22 16:03 HITS : BELONG : COMPANY NEWS High Efficiency Air Inlet Filter/Second or Third Stage Mini-Pleat Filter Clapboard: withoutClapboard FilterNumber: 1 MediumMaterial: Fiberglass Efficiency: H13 FiltrationGrade: HEPAFilter Type: PanelFil
| Common Specifications |
| Model | Dimensions | Media Area (m2) | Air Flow (m3/h) | Initial Pressure Drop (Pa) |
| W×H×D (mm) | ||||
| HMH610/03-50 | 305×305×50 | 1.6 | 150 | ≤190 |
| HMH610/05-50 | 305×610×50 | 3.3 | 300 | |
| HMH610/10-50 | 610×610×50 | 6.7 | 600 | |
| HMH570/20-50 | 1170×570×50 | 12 | 1300 | |
| HMH1170/10-50 | 1170×1170×50 | 24 | 2600 | |
| HMH610/05-70 | 305×610×70 | 5.5 | 500 | ≤220 |
| HMH610/10-70 | 610×610×70 | 11.3 | 1000 | |
| HMH610/15-70 | 915×610×70 | 17.0 | 1500 | |
| HMH610/20-70 | 1220×610×70 | 22.7 | 2000 | |
| HMH570/10-70 | 570×570×70 | 9.7 | 900 | |
| HMH570/20-70 | 1170×570×70 | 20.4 | 1800 | |
| HMH1170/10-70 | 1170×1170×70 | 40.8 | 3600 | |
| HMH610/10-90 | 610×610×90 | 15.4 | 1300 | |
| HMH610/20-90 | 1220×610×90 | 31.1 | 2600. |
This product uses model no.: HMH.
This product uses frame: Anodized Aluminum or Stainless Steel..
This product uses temperature: Maximum 90°c in Continuous Service.
Source: KOSA product catalog / internal documentation.
