  • Disposable HEPA Filter Unit for Cleanroom

    Clapboard:withoutClapboardMediumMaterial:FiberglassCasingMaterial:SuperiorAnodizedAluminumFilterMedia:Ultra-FineFiberglassFilterPaperSealingGasket:GasketinAirOutletSideTemperature:Maximum90°cinContinuousService
    Air Filter In Temperature Type Used In 150 To 450 Degree Photos 1655259050

    Model NO.
    HDU
    • Transport Package
    Carton and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai
    HS Code
    8421999090

    Air Filter In V Cell Type (Box Type And Flange Type) Photos & Pictures 1655262134

    Product Description

    Advantages
    Traps 99.99% or higher of 0.3μm particles.
    Adopts high-quality galvanized steel sheet, anodised aluminum or stainless steel as box casing material, externally covered with fire insulation.
    Adopts mini-pleated filter material, occupies small space.Use special fiberglass filter paper as filter material, low resistance and large air volume.
    Air outlet side is equipped with high-quality aluminum or stainless expanded sheet, possesses an elegant appearance.
    Large media area, high adsorption capacity and removal efficiency, reliable performance.
    Compact structure, low-cost investment, convenience in installation and maintenance.
    Each HEPA box has passed rigorous testing.

    Material Instructions
    Casing material: Superior anodized aluminum which is covered with fire insulation.
    Filter media: Ultra-fine fiberglass filter paper.
    Sealing gasket: Gasket in air outlet side.
    External configuration: Air outlet side is equipped with high-quality aluminum or stainless steel sheet.
    The box is without fan, there is circular inlet pipe in the body surface, it is a disposable box, and inner HEPA is not replaceable.
    Temperature: Maximum 90°C in continuous service.

    Application
    Suitable as terminal filtration of air supply system in clean workshops and clean rooms require high cleanliness effect-
    tively ensure air flow speed and prevent swirl.
     Installation Drawings

    Common Specifications
    Common Specifications
    ModelBox Dimensions
    (mm)    		Inlet Diameter
    (mm)    		Initial Pressure Drop (Pa) @ Air Flow (m3/h)
    HDU-570570×570×150Φ250
    Φ300
    Φ350    		100@500125@620150@780180@870
    HDU-600600×600×150100@550125@690150@870180@970
    HDU-610610×610×150100@570125@715150@900180@1000
    HDU-11701170×570×150100@1030125@1290150@1630180@1800
    HDU-12001200×600×150100@1100125@1390150@1760180@1950
    HDU-12101210×600×150100@1120125@1400150@1780180@1970
    HDU-12201220×610×150100@1150125@1440150@1820180@2020
    Note: 1. In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
              2. KOSA makes various of other models' HDU filter not listed in above table. Please consult with us if you need.

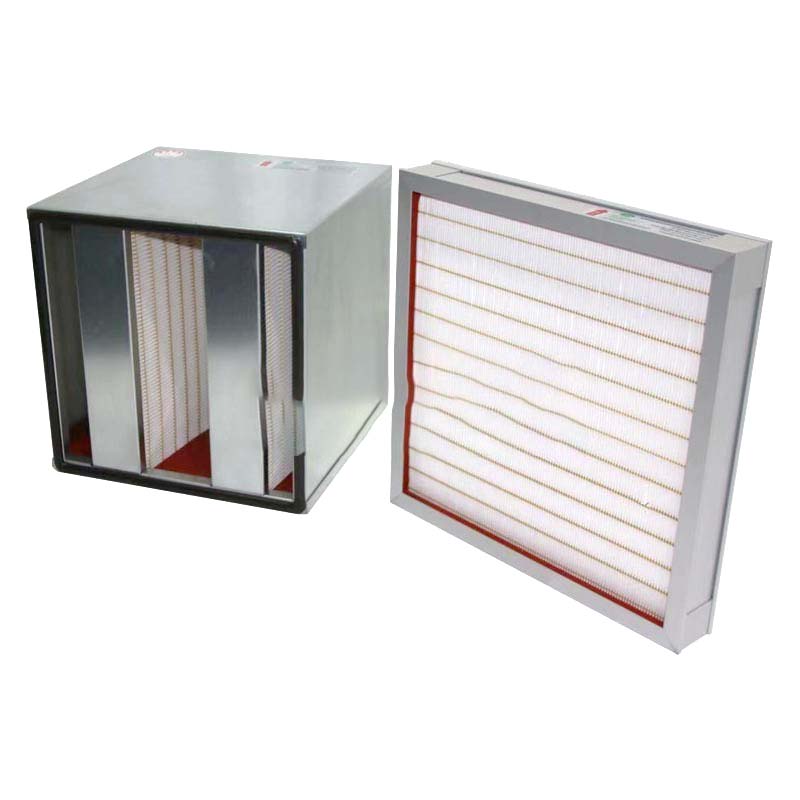

    Air Panel Mini Pleat Hepa Pleat Pack Air Filter Photos 1655186260
