  • Repeated All Metal Washable Air Filter

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:Mult-LayerCorrugatedMetalMeshEfficiency:G2FiltrationGrade:PreFilterType:Washable
    Air Cleaning Equipment Efu Fan Filter Unit For Clean Room Photos 1655185702

    Model NO.
    HWM
    • Media
    Multi-Layer Corrugated Metal Mesh
    Frame
    Aluminum Alloy or Stainless Steel.
    Standard
    En779:2012
    Transport Package
    Carton/Wooden Case
    Specification
    492x238x46mm
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    25000pieces/Year

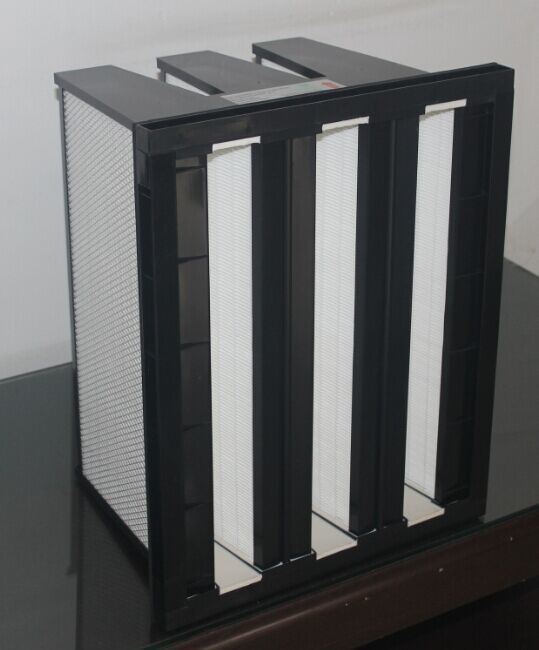

    Air Filter In V Cell Type (In High Air Flow Capacity) Photos 1655262088

    Product Description


    Application
    Suitable as pre-filter in ventilation systems of office buildings, conference rooms, hospitals, shopping malls, gymnasium, airports and other huge civil architecture as well as pre-filter in general factories of clean rooms.
    Advantages
    Aluminum frame will reduce the frequency of cleaning and maintenance.
    Multi-layer corrugated aluminum mesh, low initial pressure drop, high dust-holding capacity and long service life.
    Light in weight, compact in structure, easy to install.
    Can be washed repeatedly with compressed air or cleaning fluid.
    Good fireproof property, greatly reduce the risk of fire.
    Good heat dissipation property, extend the life of the fan motor.
    Meet EN779:2012.
    Material Instructions
    Media: Multi-layer corrugated metal mesh.
    Frame: Aluminum alloy or stainless steel.
    Structure Drawings

    Common Specifications
      ModelDimensionsRated Air Flow (m3/h)Face Velocity
    (m/s)    		Initial Pressure Drop (Pa)
    W×L×D (mm)
    HWM-20×10×2492×238×4610502.515
    HWM-20×16×2492×390×461720
    HWM-20×20×2492×492×462170
    HWM-24×24×2594×594×463170
    HWM-25×16×2619×390×462170
    HWM-25×20×2619×492×462740.
    KOSAFILTER makes various of other models' HWM filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

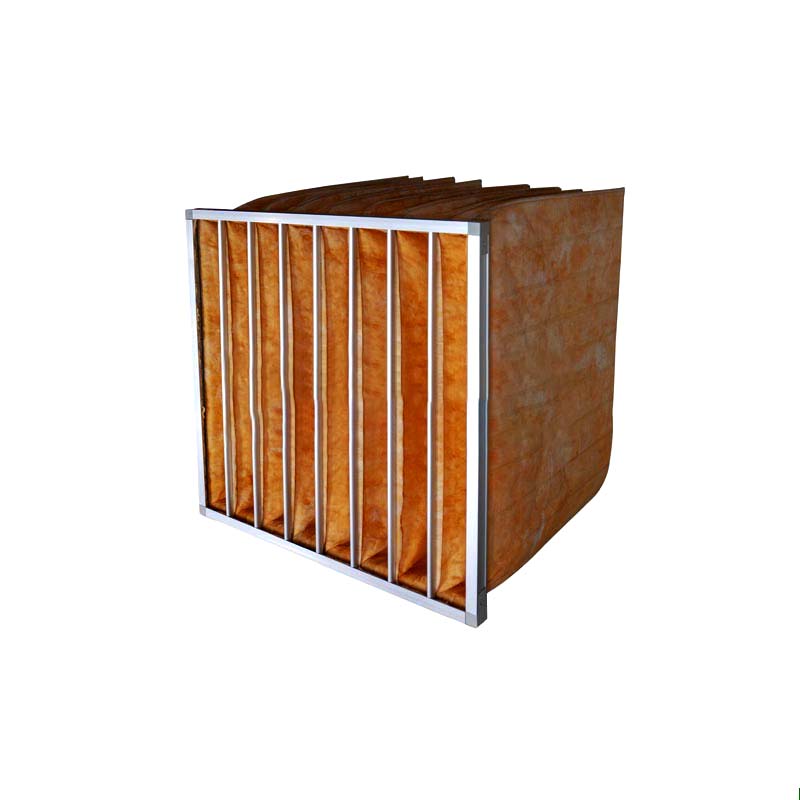

    Air Conditioner Fiberglass Pocket Filters For Ventilation Systems Photos & Pictures 1655199113
