  • Medium Efficiency Filter and Fire-Proof Fire Retardant Ceiling Filter for Spray Booth

    Material:Non-WovenApplication:Industry,FoodandBeverage,MedicineType:AirFilterMedia:Polyester,Polyamide,Nylon,etcChemicalSynthetiFrame:GalvanizedSteel,AluminumAlloyFrameetc.Temperature:Maximum90°cinContinuousService
    Air Filter Pocket Filter Bag Filter G4 F5 F6 F7 F8 Photos 1655172431

    Model NO.
    HCF
    • Transport Package
    Carton
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

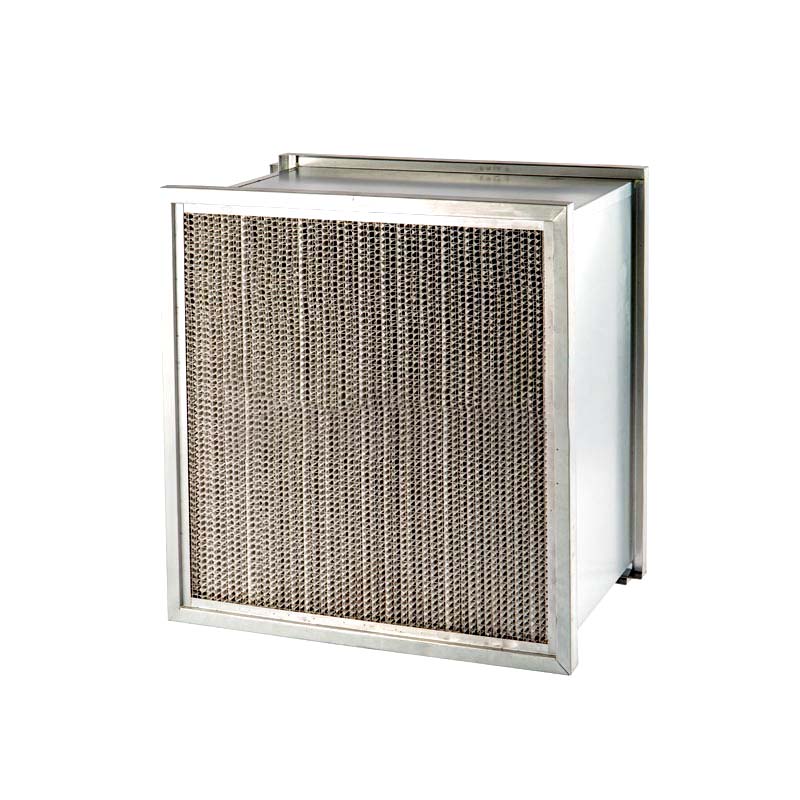

    250 Degree Celsius High Temperature Hepa Filter Used For Ultra Clean Oven Photos 1655190385

    Product Description


     Advantages
    1.In accordance with different diameter and density of filter media, we use non-woven way and produce with rolling stitch which is multiple directional and layer gradient.
    Density of fibers increases gradually, which will block particles of various sizes in different density. It has a high dust-holding capacity.
    3.Low cost together with long service life, will keep original shape under definitive air flow.
    4.Different melting point of exterior and interior of the composite fiber makes connection points between fibers are firm and tight, not easy to fall off.
    5.There are fully-viscous (three-dimensional treatment with glue), semi-viscous (surface treatment with glue) and non-viscous (no glue) filter to choose from.
    6.Can be with galvanized steel or aluminum alloy frame, or add metal mesh as supporter to effectively prevent deformation under high-speed airflow.
    7.Fireproof class: UL-900 Class 2.
    8.Meet EN779:2012.

    Material Instructions
    1.Media: Polyester, polyamide, nylon, etc chemical synthetic fibers.
    2.Frame: Galvanized steel, aluminum alloy frame with metal mesh as supporter in the air outlet side.
    3.Temperature: Maximum 90°C in continuous service.

    Application
    Applies to electronic, pharmaceutical, food and other industries. Plays the role of preventing and remedying pollution, fresh air filtering, pre-filtering for medium-efficiency filter as well as return air filtering in central air conditioning system.

    Non-woven Filter: G1 to M5
    Common Specification
    ModelHCF-600G
    Common Size      22mmT×2m×20m
    IngredientPolyester
    Gram Weight600 g/m2
    Capacity of Dust Arrestment400 g/m2
     Norm Velocity0.26 m/s
    Heat Resistance120 ºC
    Fire-resistance ClassClass F1 DIN53438
    Average Trapping Efficiency97~99%
    Initial Pressure Drop26 Pa
     Final Pressure Drop400 Pa
    Note: 1. In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
             2. KOSA makes various of other models' HCF filter not listed in above table. Please consult with us if you need.

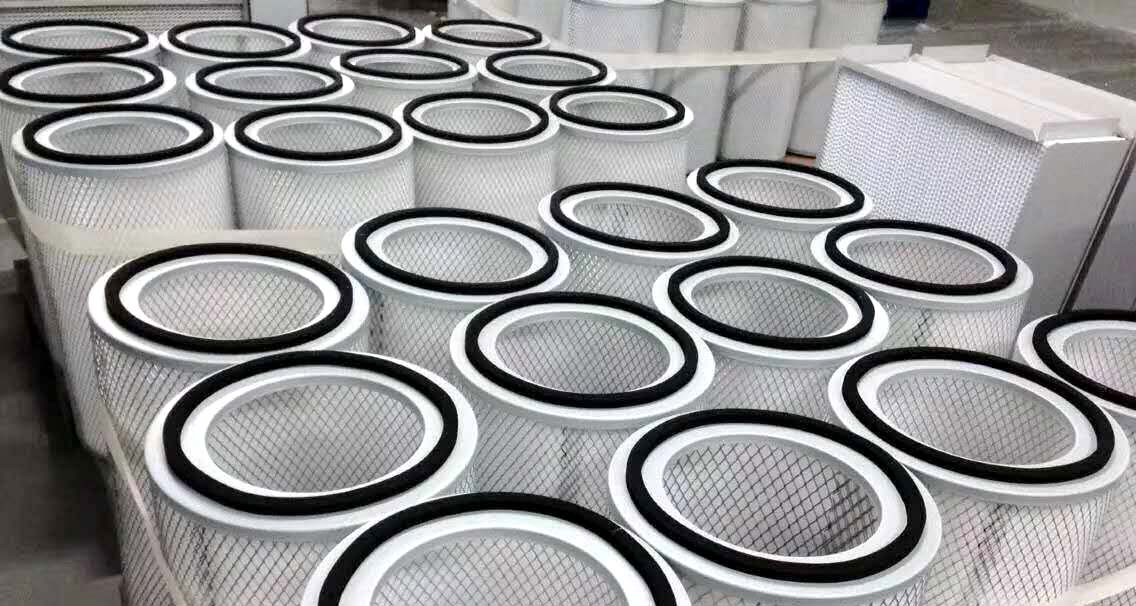

    Air Filter Cartridge (En 1822 En779) Photos & Pictures 1655256643
