  • HEPA Panel Ceiling Air Filter for Spray Booth

    Clapboard:withoutClapboardMediumMaterial:FiberglassEfficiency:H13-U17FiltrationGrade:HEPAFilterType:PanelFilterName:PortableHEPAMini-PleatPanelFilterforHospital

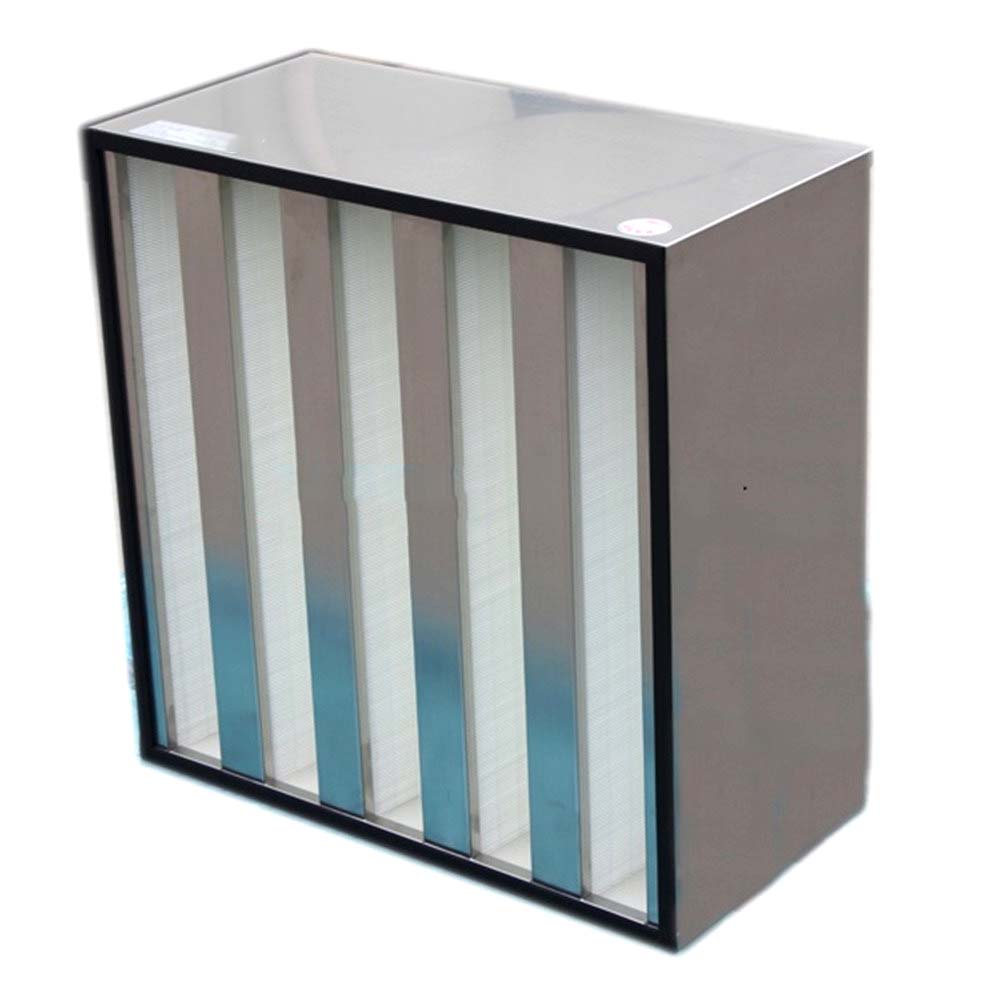

    Abs Material V Bank Plastic Frame Air Filter Photos & Pictures 1655194855

    Model NO.
    HMH
    • Media
    Ultra-Fine Fiberglass Filter Paper
    Frame
    Anodized Aluminum or Stainless Steel
    Separator
    Hot-Melt Glue
    Sealant
    Polyurethane
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carton and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai, China
    HS Code
    8421999090

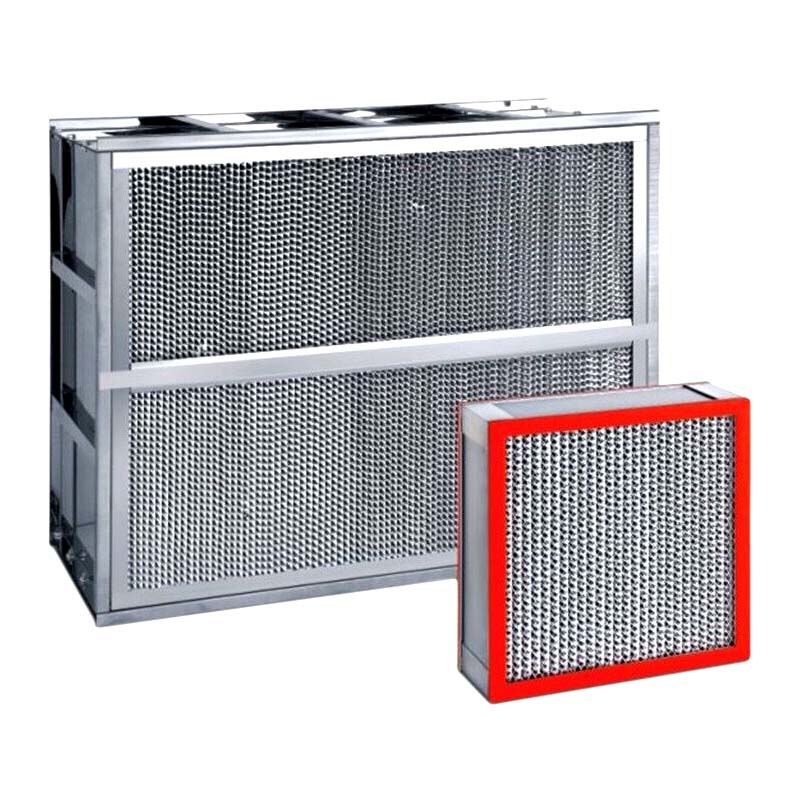

    99.99% Customized High Temperature Hepa Filter Best Home Hepa Filter 1655190064

    Product Description




    Advantages
    1.Filter efficiency ranges from E10 to H14.
    2.Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
    3.Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
    4.Double side retainers, protect the filter material, good strength.
    5.Light in weight, compact in structure.
    6.Each filter is tested according to EN1822:2009.

    Material Instructions
    1.Media: Ultra-fine fiberglass filter paper.
    2.Frame: Anodized aluminum or stainless steel.
    3.Separator: Hot-melt glue.
    4.Sealant: Polyurethane.
    5.Temperature: Maximum 90°C in continuous service.

    Application
    Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices and the occasions require ultra-high cleanliness.

    EPA/HEPA Filters: E10 to H14

    Structure Drawings
    Common Specifications

    ModelDimensionsMedia Area
    (m2)    		Rated Air Flow
    (m3/h)    		Initial Pressure Drop
    (Pa)
    W×H×D (mm)
    HMH610/03-50305×305×501.6150≤190
    HMH610/05-50305×610×503.3300
    HMH610/10-50610×610×506.7600
    HMH570/20-501170×570×50121300
    HMH1170/10-501170×1170×50242600
    HMH610/05-70305×610×705.5500≤220
    HMH610/10-70610×610×7011.31000
    HMH610/15-70915×610×7017.01500
    HMH610/20-701220×610×7022.72000
    HMH570/10-70570×570×709.7900
    HMH570/20-701170×570×7020.41800
    HMH1170/10-701170×1170×7040.83600
    HMH610/10-90610×610×9015.41300
    HMH610/20-901220×610×9031.12600
    KOSAFILTER makes various of other models' HMH filter which are not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.


    www.kosafilter.comwww.kosafilter.com



    My Dear Friend:

    Welcome to vist our company and willing to contact us if you need any further support before or after sales:
    SuZhou KoSa Environmental Protection CO.,LTD.
    Address: No.625 Huayuan Road, Zhangpu Town, Kunshan,Jiangsu Province,China
    -------


    Website: www.kosafilter.comwww.kosafilter.com

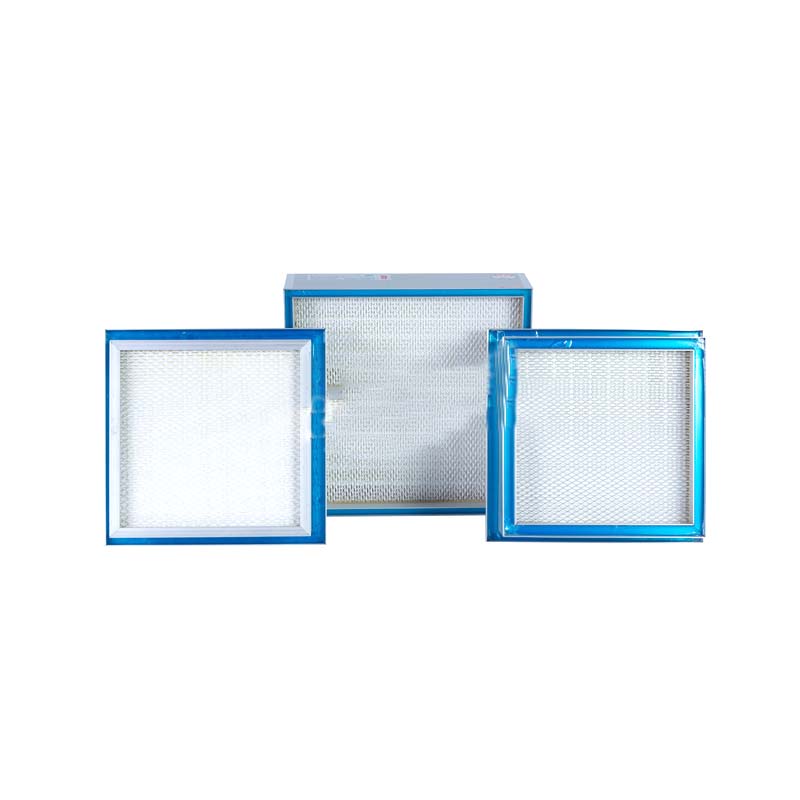

    Air Panel Gel Seal Mini Pleat Hepa Filter Photos 1655186362
