Duplex Bag Filter Housing(2)

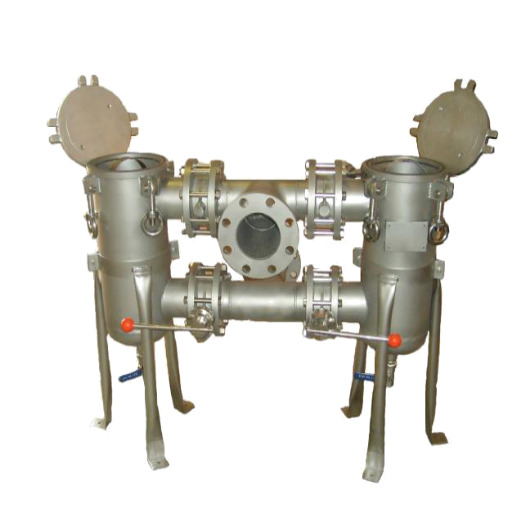

Duplex Bag Filter Housing DuplexBagFilterVesselcan be designed to be Top Entry DuPlex Bag Filter Housings or Side Entry Side Entry DuPlex Bag Filter housing. It consists of two separate bag filter vessels that share the same inlet and outlet connection , thus having the capacity to double the flow rate and filtration surface area by utilizing both vessels simultaneously, alternatively,during the application where a continuous flow is required. Isolation valves are added to direct the flow through one vessel while a bag changed.INTRODUCTION:
●10 bar Working Pressure at 160 Deg C
● Adjustable Leg Assembly and Manifold Supports allow elevation to be "field" adjusted.
● Standard #2 bag size (7 inch x 30 inch)
●Designed for use with heavy duty, high efficiency bags and standard thickness conventional bags.
●Surface finish: SS-bead blasted or mechanical polish, CS-painted
Specifications
|
Specification (Changes possible w/o notice) |
Size 01 |
Size 02 |
|
|
Type code |
DU2P1S |
DU2P2S |
|
|
Max. flow rate (m³/h) |
40 |
80 |
|
|
Filter area (m²) |
0.5 |
1 |
|
|
Filter housing volume(litre) |
31 |
54 |
|
|
Filter housing weight(kg) |
approx. 78 |
approx. 90 |
|
|
Installation height(cm) |
approx. 118 |
approx. 156 |
|
|
Installation space(cm) |
approx. 130 x 40 |
||
|
Mode of installation |
self-supporting |
||
|
Material of construction |
Housing |
SS304 /SS316 (wetted housing parts) |
|
|
Restrainer basket |
SS304 /SS316 |
||
|
Closure |
SS 304 (swing eye bolts and ring nuts) |
||
|
Other parts |
SS 304 |
||
|
Operating data |
max. 10 bar / 120 °C respectively 15bra / 30 °C |
||
|
Housing connections |
N1/ N2 (in let/ outle |
DN50 / PN10 |
|
|
N3/N4 (lid hole) |
1/4" BSP female w/o plug |
||
|
Hinged lid |
|
standard position at 90°/270° |
|
