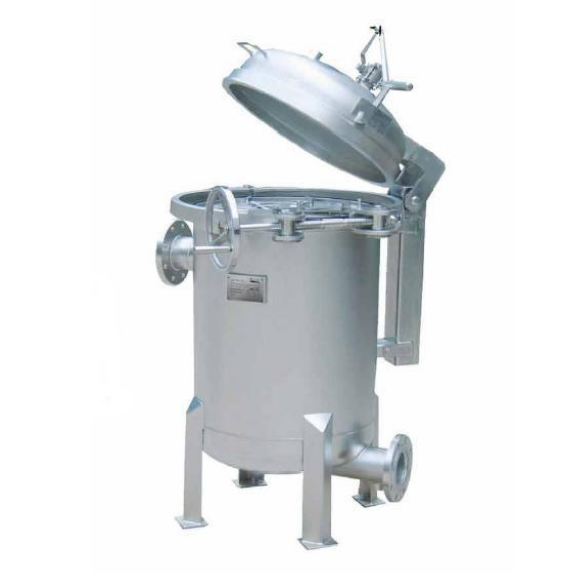

V-clamp Quick Open Multi-bag Filter Vessel
V-clamp Quick Open Multi-bag Filter Vessel v-clamp quick open multi-bag vessel with construction from 3 bags to 12 bags to meet larger liquid flow rate requirement, open and close vessel for changing filter bag in just 2 minutes, all bag filter vessel design in ASME VIII see VIII DIV I standard. It is so easy to open and close your vessel for changing filter bag in just 2 minutes.INTRODUCTION:
-
V-clamp Quick Open Multi-bag Filter Vessel
v-clamp quick open multi-bag vessel with construction from 3 bags to 12 bags to meet larger liquid flow rate requirement, open and close vessel for changing filter bag in just 2 minutes, all bag filter vessel design in ASME VIII see VIII DIV I standard.
It is so easy to open and close your vessel for changing filter bag in just 2 minutes.
Features
●V-clamp rapid opening and closing design
● Open and close cycles in less than 30 seconds
● Fast, safe, simple, high efficiency, high productivity
●For high volume application and processes demanding frequent bag change-out
● 3-bag to 12-bag (#02) housing designs available
● Flow rate: 60-480 m3/h
●Maximum operating pressure: 10bar
● Maximum operating temperature: 160 Deg C with Viton seals
●Material of construction: SS304, SS316 or carbon steel
●Surface finish: SS-bead blasted or mechanical polish, CS-painted
Specifications
|
Type No. |
Bag Size |
No. of Bags |
Theoretical Flow Rate |
Filter Area |
Inlet/Outlet |
|
VQ2P2 |
#02 |
2 |
80 m3/hour |
1.0 m2 |
3” - 4” |
|
VQ3P2 |
#02 |
3 |
120 m3/hour |
1.5 m2 |
3” - 4” |
|
VQ4P2 |
#02 |
4 |
160 m3/hour |
2.0 m2 |
3” - 6” |
|
VQ5P2 |
#02 |
5 |
200 m3/hour |
2.5 m2 |
4” - 6” |
|
VQ6P2 |
#02 |
6 |
240 m3/hour |
3.0 m2 |
4” - 6” |
|
VQ8P2 |
#02 |
8 |
320 m3/hour |
4.0 m2 |
6” - 8” |
|
VQ9P2 |
#02 |
10 |
400 m3/hour |
5.0 m2 |
8” - 10” |
|
VQ10P2 |
#02 |
12 |
480 m3/hour |
6.0 m2 |
8” - 10 |
